Thread specifications: Metric, German, British, American
Waterproof rating: Use O-ring within the buckle range, IP68
Operating temperature: -50℃ to 250℃
Product features:
This type of connector removes the claw - like parts. With precise improved design, it connects the inner core and the main body components. While maintaining the waterproof performance, it makes the assembly more convenient. It can withstand high and low temperatures, maintain elasticity within the range of - 50℃ - 250℃, and can be used for a long time. The O - ring groove makes the connection tighter. The all - rubber protective cover protects the connection.
Product materials:
The inner core and O - ring are made of white silicone material with high - temperature resistance. The main body, large cap, and nut components are made of high - quality brass.

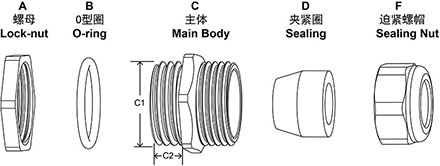

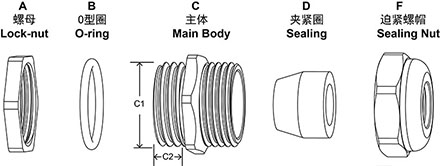

Exploded view:
Why choose silicone - made connectors?
"The silicone - made connectors protect the wires from the abrasion of drilling. The seals are made of weather - resistant silicone material, which plays a role in protecting the sharp edges of the metal plates. It effectively solves the technical problems related to the use of electrical equipment in the existing technology. For example, cable connectors are prone to aging and blistering after long - term use, causing their elasticity to disappear and even separate from each other. It ensures the insulation, shielding and sealing performance of cable connectors after long - term use.
Application fields:
It is mainly used for the lifting and transportation of raw water and sewage, the feed water and cooling circulating water in thermal power plants, the metallurgical industry, condensate water, the pipeline transportation of chemical substances in the chemical industry, the cooling and dilution in the petrochemical industry, as well as the flexible connection between long - and short - distance pipelines in other industries. Because rubber has high wear resistance, it is also suitable for the low - temperature transportation of granular, powdery substances and gases in all industries."
How to choose the correct thread type?
1. First, determine the aperture of the installation panel and whether it is a tapped hole.
2. Refer to the technical parameter table to find the matching thread model (such as M, PG, NPT, G threads).
3. If the installation panel has no tapped hole, only the aperture needs to be determined.
4. The extended - length thread is suitable for thick installation panels.
