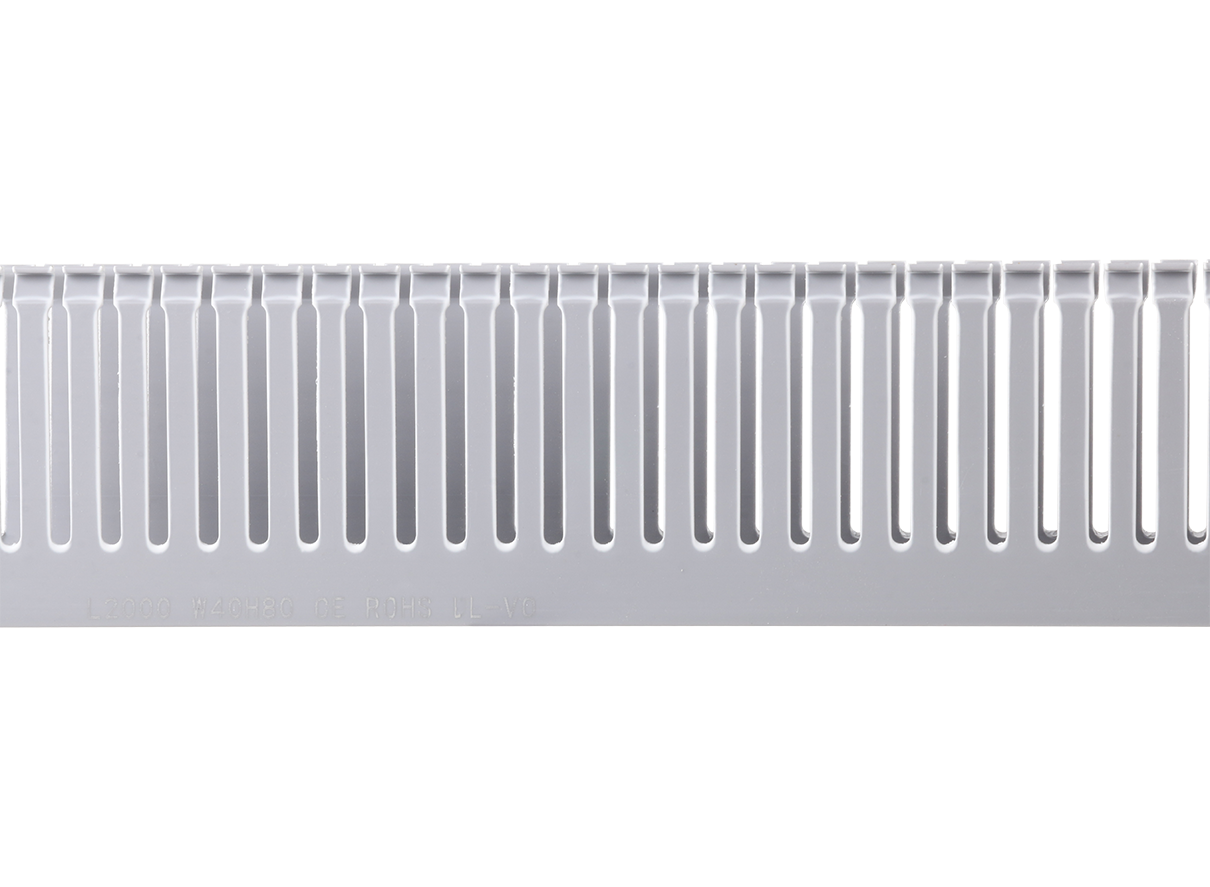

    Narrow Slot Wiring Duct
    80*25

    Wide slot / finger design provides greater side wall rigidity and can be used with a wide range of wire bundle sizes

    Product MaterialMade of rigid PVC

    Product CertificationUL: E306674, CE: EN50085, RoHS,REACH.

    Work Temperature-40 ℃ to 60 ℃

    Flame Retardant GradeUL94 Flammability rating of V-0

    Available Color Gray,Blue and Other Special Colors

    Length2M (Special length come with MOQ request)

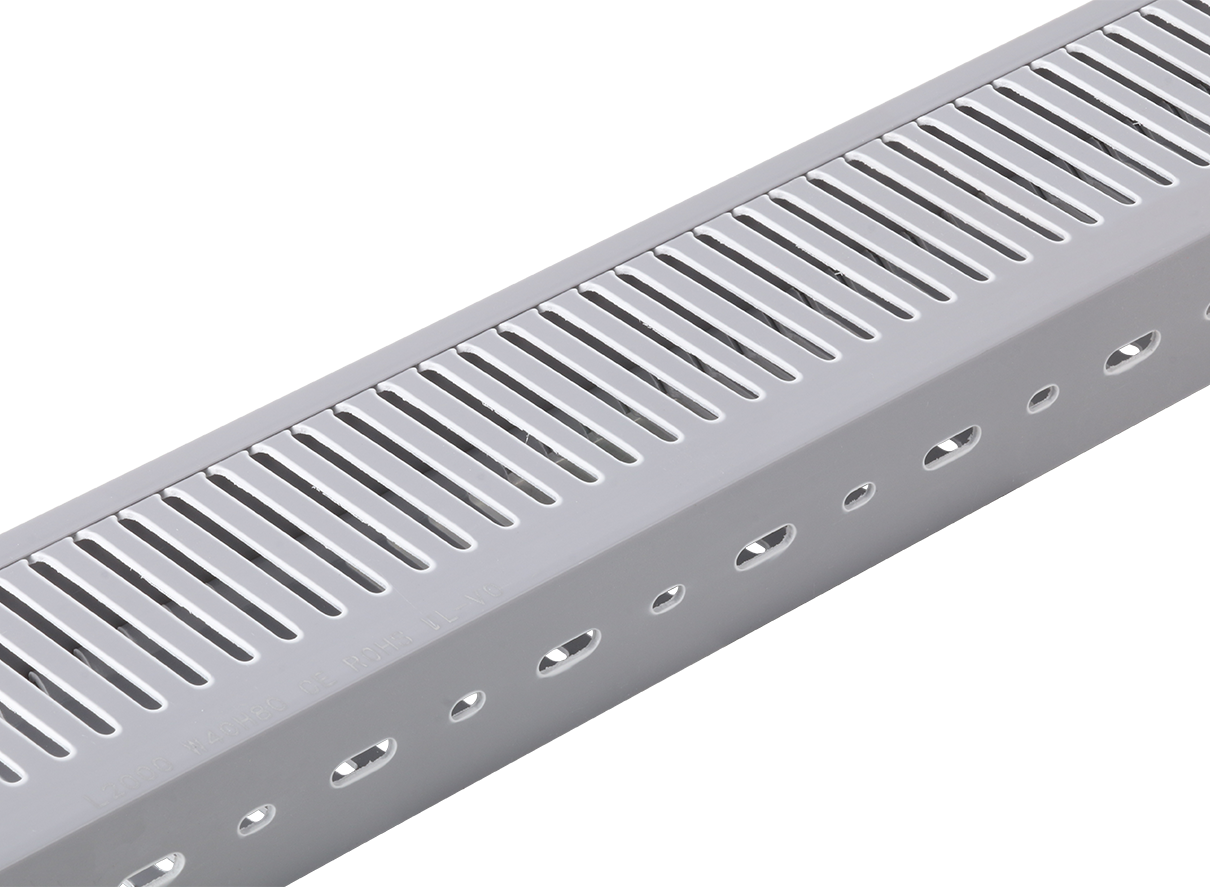

    Product StructureComposed of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove OthersProvided with mounting holes
    Inquire Download
    Product Characteristics

    1. The reverse buckle groove cover and groove body design combination will never fall off, and the joint surface is smooth, without cutting hands or rubbing nearby wiring

    2. The wiring duct is not easily broken, deformed, or discolored within 65 ℃, making assembly time-saving and convenient

    3. Low outlet hole, easy combination, simple disassembly, easy wiring

    Product Dimension
    Product Parameters

    Item No.

    width x High
    H*W

    Finger
    width
    P

    Slot
    width
    Q

    Number of meters
    in a full case
    (m)meter

    Wirecapability
    /2.0sp

    Carton Size
    L*W*H(CM)

    Weight
    (kg)

    Standard
    Thickness
    (mm)

    Standard
    Length
    (2M)

    Gray

    Blue

    HVDN3020F

    HVDN3020FE

    30×20

    6

    4

    200

    20~30pcs

    201×22×19

    40

    1.3

    Pcs/Branch 2M
    Including truning
    and lids

    HVDN3025F

    HVDN3025FE

    30×25

    6

    4

    100

    20~30pcs

    201×15×19

    26

    1.3

    HVDN3030F

    HVDN3030FE

    30×30

    6

    4

    100

    20~30pcs

    201×18×19

    28

    1.3

    HVDN3050F

    HVDN3050FE

    30×50

    6

    4

    100

    35~45pcs

    201×26×20

    36

    1.3

    HVDN3535F

    HVDN3535FE

    35×35

    6

    4

    100

    35~45pcs

    201×20×23

    33

    1.3

    HVDN4020F

    HVDN4020FE

    40×20

    6

    4

    100

    20~30pcs

    201×15×23

    28

    1.3

    HVDN4025F

    HVDN4025FE

    40×25

    6

    4

    100

    20~30pcs

    201×15×24

    30

    1.4

    HVDN4030F

    HVDN4030FE

    40×30

    6

    4

    100

    25~35pcs

    201×17×24

    32

    1.4

    HVDN4035F

    HVDN4035FE

    40×35

    6

    4

    100

    30~40pcs

    201×20×25

    36

    1.4

    HVDN4040F

    HVDN4040FE

    40×40

    6

    4

    100

    55~65pcs

    201×23×26

    40

    1.4

    HVDN4050F

    HVDN4050FE

    40×50

    6

    4

    100

    60~75pcs

    201×30×26

    45

    1.4

    HVDN4060F

    HVDN4060FE

    40×60

    6

    4

    100

    90~100pcs

    201×33×26

    50

    1.4

    HVDN4545F

    HVDN4545FE

    45×45

    6

    4

    100

    55~65pcs

    201×25×27

    40

    1.4

    HVDN5020F

    HVDN5020FE

    50×20

    6

    4

    100

    15 25pcs

    201×13×30

    32

    1.5

    HVDN5025F

    HVDN5025FE

    50×25

    6

    4

    100

    15~25pcs

    201×15×30

    34

    1.5

    HVDN5030F

    HVDN5030FE

    50×30

    6

    4

    100

    25~40pcs

    201×18×30

    37

    1.5

    HVDN5035F

    HVDN5035FE

    50×35

    6

    4

    100

    35~55pcs

    201×21×30

    40

    1.5

    HVDN5040F

    HVDN5040FE

    50×40

    6

    4

    100

    55~65pcs

    201×22×30

    45

    1.5

    HVDN5045F

    HVDN5045FE

    50×45

    6

    4

    100

    70~80pcs

    201×26×30

    46

    1.5

    HVDN5050F

    HVDN5050FE

    50×50

    6

    4

    100

    80~90pcs

    201×29×30

    49

    1.5

    HVDN5060F

    HVDN5060FE

    50×60

    6

    4

    100

    100~110pcs

    201×35×30

    57

    1.5

    HVDN5080F

    HVDN5080FE

    50×80

    6

    4

    60

    160~180pcs

    201×28×30

    42

    1.6

    HVDN50100F

    HVDN50100FE

    50×100

    6

    4

    60

    200~250pcs

    201×33×31

    50

    1.6

    HVDN6025F

    HVDN6025FE

    60×25

    6

    4

    100

    35~50pcs

    201×16×36

    39

    1.6

    HVDN6030F

    HVDN6030FE

    60×30

    6

    4

    100

    60~80pcs

    201×19×36

    43

    1.6

    HVDN6035F

    HVDN6035FE

    60×35

    6

    4

    100

    90~105pcs

    201×21×36

    44

    1.6

    HVDN6040F

    HVDN6040FE

    60×40

    6

    4

    100

    100~115pcs

    201×23×36

    49

    1.6

    HVDN6045F

    HVDN6045FE

    60×45

    6

    4

    100

    110~125pcs

    201×26×36

    50

    1.6

    HVDN6050F

    HVDN6050FE

    60×50

    6

    4

    100

    120~130pcs

    201×28×36

    55

    1.6

    HVDN6060F

    HVDN6060FE

    60×60

    6

    4

    80

    120~130pcs

    201×33×29

    51

    1.6

    HVDN6080F

    HVDN6080FE

    60×80

    6

    4

    60

    180~210pcs

    201×27×36

    51

    1.6

    HVDN60100F

    HVDN60100FE

    60×100

    6

    4

    48

    240~280pcs

    201×33×28

    45

    1.6

    HVDN8025F

    HVDN8025FE

    80×25

    6

    4

    60

    100~120pcs

    201×16×27

    29

    1.7

    HVDN8030F

    HVDN8030FE

    80×30

    6

    4

    60

    110~125pcs

    201×18×27

    30

    1.7

    HVDN8035F

    HVDN8035FE

    80×35

    6

    4

    60

    110~130pcs

    201×21×27

    33

    1.7

    HVDN8040F

    HVDN8040FE

    80×40

    6

    4

    60

    140~160pcs

    201×23×27

    33

    1.7

    HVDN8045F

    HVDN8045FE

    80×45

    6

    4

    60

    140~160pcs

    201×26×28

    39

    1.8

    HVDN8050F

    HVDN8050FE

    80×50

    6

    4

    60

    160~180pcs

    201×28×28

    41

    1.8

    HVDN8055F

    HVDN8055FE

    80×55

    6

    4

    60

    160~180pcs

    201×31×28

    41

    1.8

    HVDN8060F

    HVDN8060FE

    80×60

    6

    4

    60

    180~210pcs

    201×33×28

    44

    1.8

    HVDN8080F

    HVDN8080FE

    80×80

    6

    4

    48

    230~280pcs

    201×31×28

    45

    1.8

    HVDN80100F

    HVDN80100FE

    80×100

    6

    4

    36

    250~340pcs

    201×33×27

    35

    1.8

    HVDN10033F

    HVDN10033FE

    100×33

    6

    4

    60

    130~165pcs

    201×22×33

    35

    1.8

    HVDN10040F

    HVDN10040FE

    100×40

    6

    4

    60

    130~175pcs

    201×24×33

    38

    1.9

    HVDN10050F

    HVDN10050FE

    100×50

    6

    4

    60

    220~250pcs

    201×28×33

    45

    1.9

    HVDN10060F

    HVDN10060FE

    100×60

    6

    4

    60

    240~290pcs

    201×29×34

    59

    1.9

    HVDN10080F

    HVDN10080FE

    100×80

    6

    4

    36

    260~350pcs

    201×27×34

    34

    2.0

    HVDN100100F

    HVDN100100FE

    100×100

    6

    4

    36

    300~400pcs

    201×33×34

    42

    2.0

    Details & Advantages
    • Made of rigid PVC
      Adopting brand new PVC material that meets UL94V-0 flame retardant rating
    • High temperature &low temperature resistance
      Static -40 ℃ continuous high temperature up to 85 ℃, wiring duct is not easily broken, deformed, or discolored within 65 ℃
    • Design upgradeThicker and more convenient
      Upgraded slot bottom and slot cover with thick bottom for greater stability, featuring a reverse buckle design for easy and efficient installation and copying
    • Durable, sturdy,and highly resilient
      The product is sturdy and durable, maintaining its integrity even after being twisted and subjected to significant pressure.
