Wide Slot Wiring Duct for Panels, Control Cabinets & Data Centers

Product Characteristics

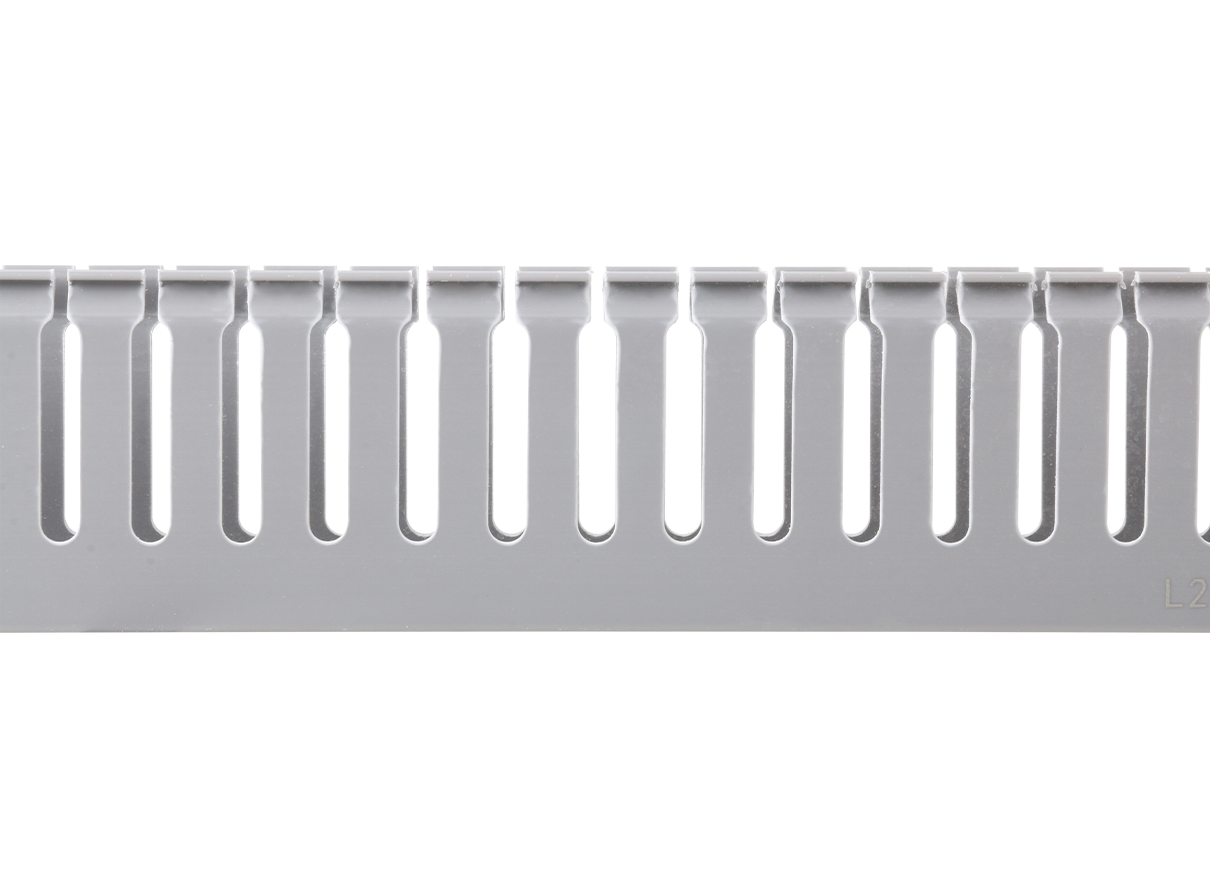

The reverse buckle groove cover and groove body design combination will never fall off, and the joint surface is smooth, without cutting hands or rubbing nearby wiring
The wiring duct is not easily broken, deformed, or discolored within 65 ℃, making assembly time-saving and convenient

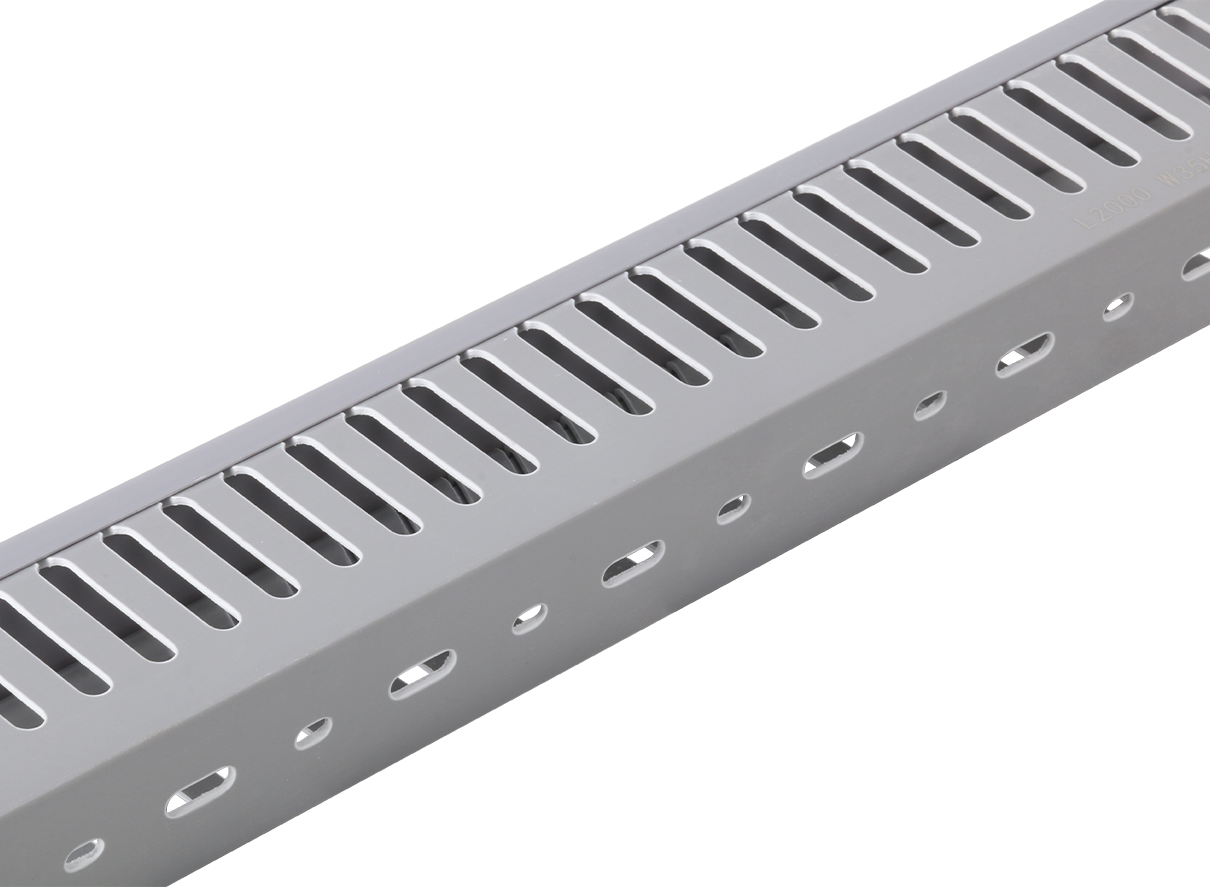

Low outlet hole, easy combination, simple disassembly, easy wiring

Product Dimension

Product Parameters

Item No.		width x High H*W	Finger width P	Slot width Q	Number of meters in a full case (m)meter	Wirecapability /2.0sp	Carton Size LWH(CM)	Weight (kg)	Standard Thickness (mm)	Standard Length (2M)
Gray	Blue	width x High H*W	Finger width P	Slot width Q	Number of meters in a full case (m)meter	Wirecapability /2.0sp	Carton Size LWH(CM)	Weight (kg)	Standard Thickness (mm)	Standard Length (2M)
VDN2015F	VDN2015FE	20×15	6	5	200	3~10pcs	201×17×14	31	1.2	Pcs/Branch 2M Including truning and lids
VDN2020F	VDN2020FE	20×20	6	5	200	3~10pcs	201×20×14	32	1.2
VDN2520F	VDN2520FE	25×20	6	5	100	7~11pcs	201×15×16	20	1.2
VDN2525F	VDN2525FE	25×25	6	5	100	14~23pcs	201×15×17	23	1.3
VDN3015F	VDN3015FE	30×15	6	5	200	7~13pcs	201×17×25	35	1.3
VDN3020F	VDN3020FE	30×20	6	5	200	20~30pcs	201×22×19	40	1.3
VDN3025F	VDN3025FE	30×25	6	5	100	20~30pcs	201×15×19	26	1.3
VDN3030F	VDN3030FE	30×30	6	5	100	20~30pcs	201×18×19	28	1.3
VDN3035F	VDN3035FE	30×35	6	5	100	30~40pcs	201×21×19	29	1.3
VDN3040F	VDN3040FE	30×40	6	5	100	30~40pcs	201×23×19	34	1.3
VDN3050F	VDN3050FE	30×50	6	5	100	35~45pcs	201×26×20	36	1.3
VDN3333F	VDN3333FE	33×33	7	6	100	30~40pcs	201×18×22	27	1.3
VDN3525F	VDN3525FE	35×25	7	6	100	30~40pcs	201×17×21	27	1.3
VDN3530F	VDN3530FE	35×30	7	6	100	35~45pcs	201×17×22	29	1.3
VDN3535F	VDN3535FE	35×35	7	6	100	35~45pcs	201×20×23	33	1.3
VDN4020F	VDN4020FE	40×20	7	6	100	20~30pcs	201×15×23	28	1.3
VDN4025F	VDN4025FE	40×25	7	6	100	20~30pcs	201×15×24	30	1.4
VDN4030F	VDN4030FE	40×30	7	6	100	25~35pcs	201×17×24	32	1.4
VDN4035F	VDN4035FE	40×35	7	6	100	30~40pcs	201×20×25	36	1.4
VDN4040F	VDN4040FE	40×40	7	6	100	55~65pcs	201×23×26	40	1.4
VDN4050F	VDN4050FE	40×50	7	6	100	60~75pcs	201×30×26	45	1.4
VDN4060F	VDN4060FE	40×60	7	6	100	90~100pcs	201×33×26	50	1.4
VDN4525F	VDN4525FE	45×25	7	6	100	15~25pcs	201×20×27	30	1.4
VDN4530F	VDN4530FE	45×30	7	6	100	35~50pcs	201×21×27	32	1.4
VDN4533F	VDN4533FE	45×33	7	6	100	35~50pcs	201×22×27	35	1.4
VDN4535F	VDN4535FE	45×35	7	6	100	55~65pcs	201×23×27	37	1.4
VDN4545F	VDN4545FE	45×45	7	6	100	55~65pcs	201×25×27	40	1.4
VDN4565F	VDN4565FE	45×65	7	6	100	100~110pcs	201×31×27	43	1.5
VDN5020F	VDN5020FE	50×20	8	6	100	15~25pcs	201×13×30	32	1.5
VDN5025F	VDN5025FE	50×25	8	6	100	15~25pcs	201×15×30	34	1.5
VDN5030F	VDN5030FE	50×30	8	6	100	25~40pcs	201×18×30	37	1.5
VDN5035F	VDN5035FE	50×35	8	6	100	35~55pcs	201×21×30	40	1.5
VDN5040F	VDN5040FE	50×40	8	6	100	55~65pcs	201×22×30	45	1.5
VDN5045F	VDN5045FE	50×45	8	6	100	70~80pcs	201×26×30	46	1.5
VDN5050F	VDN5050FE	50×50	8	6	100	80~90pcs	201×29×30	49	1.5
VDN5055F	VDN5055FE	50×55	8	6	100	80~90pcs	201×31×30	50	1.5
VDN5060F	VDN5060FE	50×60	8	6	100	100~110pcs	201×35×30	57	1.5
VDN5080F	VDN5080FE	50×80	8	6	60	160~180pcs	201×28×30	42	1.6
VDN50100F	VDN50100FE	50×100	8	6	60	200~250pcs	201×33×31	50	1.6
VDN6025F	VDN6025FE	60×25	8	6	100	35~50pcs	201×16×36	39	1.6
VDN6030F	VDN6030FE	60×30	8	6	100	60~80pcs	201×19×36	43	1.6
VDN6035F	VDN6035FE	60×35	8	6	100	90~105pcs	201×21×36	44	1.6
VDN6040F	VDN6040FE	60×40	8	6	100	100115pcs	201×23×36	49	1.6
VDN6045F	VDN6045FE	60×45	8	6	100	110~125pcs	201×26×36	50	1.6
VDN6050F	VDN6050FE	60×50	8	6	100	120~130pcs	201×28×36	55	1.6
VDN6060F	VDN6060FE	60×60	8	6	80	120~130pcs	201×33×29	51	1.6
VDN6080F	VDN6080FE	60×80	8	6	60	180~210pcs	201×27×36	51	1.6
VDN60100F	VDN60100FE	60×100	10	8	48	240~280pcs	201×33×28	45	1.6
VDN6525F	VDN6525FE	65×25	10	8	100	35~50pcs	201×26×23	41	1.6
VDN6533F	VDN6533FE	65×33	10	8	100	40~60pcs	201×28×23	43	1.6
VDN6545F	VDN6545FE	65×45	10	8	100	110~120pcs	201×31×23	52	1.6
VDN6565F	VDN6565FE	65×65	10	8	80	180~200pcs	201×36×23	50	1.6
VDN8025F	VDN8025FE	80×25	10	8	60	100~120pcs	201×16×27	29	1.7
VDN8030F	VDN8030FE	80×30	10	8	60	110~125pcs	201×18×27	30	1.7
VDN8035F	VDN8035FE	80×35	10	8	60	110~130pcs	201×21×27	33	1.7
VDN8040F	VDN8040FE	80×40	10	8	60	140~160pcs	201×23×27	33	1.7
VDN8045F	VDN8045FE	80×45	10	8	60	140~160pcs	201×26×28	39	1.8
VDN8050F	VDN8050FE	80×50	10	8	60	160~180pcs	201×28×28	41	1.8
VDN8055F	VDN8055FE	80×55	10	8	60	160~180pcs	201×31×28	41	1.8
VDN8060F	VDN8060FE	80×60	10	8	60	180~210pcs	201×33×28	44	1.8
VDN8080F	VDN8080FE	80×80	10	8	48	230~280pcs	201×31×28	45	1.8
VDN80100F	VDN80100FE	80×100	10	8	36	250~340pcs	201×33×27	35	1.8
VDN10033F	VDN10033FE	100×33	11	9	60	130~165pcs	201×22×33	35	1.8
VDN10040F	VDN10040FE	100×40	11	9	60	130~175pcs	201×24×33	38	1.9
VDN10050F	VDN10050FE	100×50	11	9	60	220~250pcs	201×28×33	45	1.9
VDN10060F	VDN10060FE	100×60	11	9	60	240~290pcs	201×29×34	59	1.9
VDN10080F	VDN10080FE	100×80	11	9	36	260~350pcs	201×27×34	34	2.0
VDN100100F	VDN100100FE	100×100	11	9	36	300~400pcs	201×33×34	42	2.0

Details & Advantages

Made of rigid PVC

Adopting brand new PVC material that meets UL94V-0 flame retardant rating
High temperature &low temperature resistance

Static -40 ℃ continuous high temperature up to 85 ℃, wiring duct is not easily broken, deformed, or discolored within 65 ℃
Design upgradeThicker and more convenient

Upgraded slot bottom and slot cover with thick bottom for greater stability, featuring a reverse buckle design for easy and efficient installation and copying
Durable, sturdy,and highly resilient

The product is sturdy and durable, maintaining its integrity even after being twisted and subjected to significant pressure.

Product Video

Conduit freezing test
Cable tray heavy object rolling test
Wiring Duct Car Fire test ...
low-temperature environ...
Packaging process
Wiring Duct Production

Production Equipment & Package

Delivery time & Return/Exchange Notice

Delivery time

We will arrange shipment within 2 working days after your successful payment. If the order includes customized goods, the actual estimated delivery time shall prevail.

Return and Exchange Notice

The following situations can apply for exchange:

Due to damages caused during transportation,
Non customized product size purchase error (buyer needs to bear the shipping cost for replacement)
Incorrect shipment, product does not match order

If there are no quality issues, customized products do not support returns or exchanges
