Red：
Cable size:0.5-1.5mm(A.W.G.22~16)
Max current:Imax=19A
Material:purple copper
Blue
Cable size:1.5-2.5mm(A.W.G.16~14)
Max current:Imax=27A
Material:purple copper
Yellow
Cable size:4-6mm(A.W.G.12~10)
Max current:Imax=48A
Material:purple copper

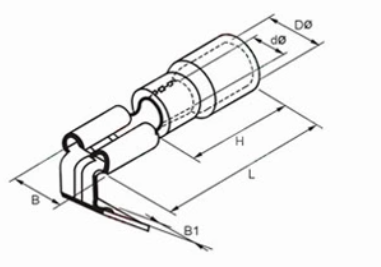

External dimensions
Technical parameters
ITEM NO | Color | Name tab | Dimension(mm) | |||||
B | B1 | H | DΦ | dΦ | L | |||
Cable size:0.5-1.5mm² (A.W.G.22~16) Max current:Imax=10A Material:copper | ||||||||
PBDD 1.25-250 | Red | 0.8×6.35 | 7.4 | 6.35 | 10.0 | 3.8 | 1.7 | 21.5 |
Cable size:1.5-2.5mm² (A.W.G.16~14) Max current:Imax=15A Material:copper | ||||||||
PBDD 2-250 | Blue | 0.8×6.35 | 7.4 | 6.35 | 10.0 | 4.3 | 2.3 | 21.5 |
Cable size:4-6mm² (A.W.G.12~10) Max current:Imax=24A Material:copper | ||||||||
PBDD 5.5-250 | Yellow | 0.8×6.35 | 7.4 | 6.35 | 13.0 | 5.7 | 3.4 | 25.0 |
