Material: Made of PVC, with internal threads, heat-resistant and insulating.
Usage: Strip part of the wire sheath, insert the wires to be connected simultaneously and twist them tightly.
Purpose: An excellent connector for electrical products.

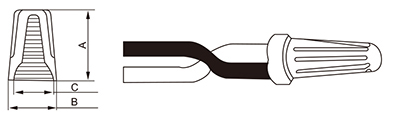

Product decomposition:
Technical parameters:
ITEM.NO | High | wide | Thread inner diameter | Approx Wire Size | Color |
P1 | 14.9 | 8.6 | 6.5 | 2 pieces of 0.5-1.5 square | Grzy |
P2 | 17.8 | 10 | 7.5 | 3 pieces of 0.5 - 1.5 square | Blue |
P3 | 21.9 | 12.5 | 10 | 2 pieces of 2.5 square | Orange |
P4 | 24.6 | 14 | 11.2 | 3 pieces of 2.5 square | Yellow |
P5 | 26.4 | 15.3 | 13 | 4 pieces of 2.5 square | Red |
