Material: Made of UL-approved nylon 66 (black) material, with a fire rating of 94V-2, acid-resistant and not prone to aging.
Operating temperature: -35℃ to 85℃
Color: The standard color is natural color (white), and there is also black with anti-ultraviolet function. Special colors are welcome to be customized.

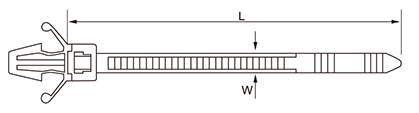

Product breakdown:
Technical parameters:
Item No. | Length(mm) | Width(mm) | Hole Dia. | Max.Bundle Dia.(mm) | Panel Thickness(mm) | Min Tensile Strength（kg） |
100PT | 100 | 2.5 | 4.5 | 25 | 2.4 | 8 |
120PT | 120 | 2.5 | 4 | 30 | 2 | 8 |
130PT | 130 | 4.6 | 6.4 | 30 | 3.2 | 22 |
150PT4 | 150 | 3.6 | 4.6 | 35 | 2.3 | 18 |
150PT5 | 150 | 4.6 | 6.8 | 35 | 3.5 | 22 |
