Thread Specification: Metric, PG thread, G(PF) thread (thread can be customized).
Waterproof Rating: IP68.
Working Temperature: -50°C to +180°C.
Product Characteristics:
1. Excellent Durability: The stainless steel cable sealing sleeve has high stability and can provide good strength and corrosion resistance in harsh environments.
2. No need for disassembly; it can be directly inserted into the cable and then easily tightened, saving time. Its precise clamping technology secures the steel wire rope. The product has strong tensile strength, good airtightness, and can withstand 50 meters of continuous submersion.
3. Stainless steel material features strong tensile strength, waterproofness, dustproofing, salt resistance, weak acid resistance, alcohol, oil, grease, and general solvents.
Product Material:
Parts A, C, and F are made of 304/316 stainless steel, part E is made of UL-approved nylon PA66 (fire rating UL94V-2), and parts B and D are made of butyl rubber or ethylene propylene diene monomer (EPDM) rubber.

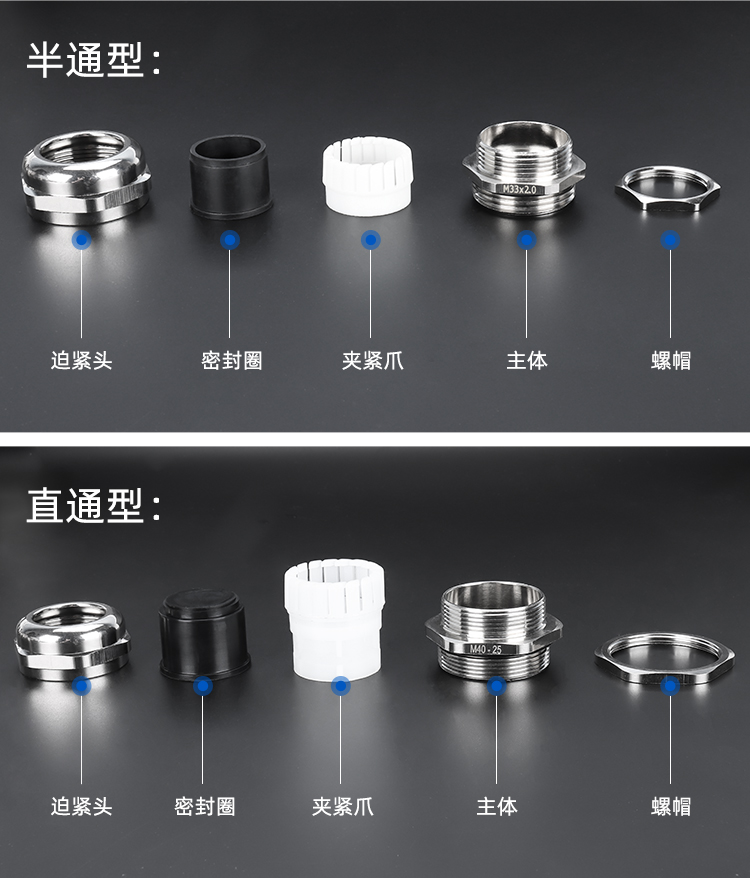

Assembly Diagram:
Technical parameters:
German-made teeth | ||||||
Screw thread specifications | specifications | Cable range | Thread outer diameter | Thread length | Wrench diameter | Package |
PG7 | PG7-6.5 | 3-6.5 | 12.5 | 6.5 | 14/14 | 50 |
PG9 | PG9-8 | 4-8 | 15.2 | 7 | 17/17 | 50 |
PG11 | PG11-10 | 5-10 | 18.6 | 8 | 20/20 | 50 |
PG13.5 | PG13.5-12 | 6-12 | 20.4 | 8 | 22/22 | 50 |
PG16 | PG16-14 | 10-14 | 22.5 | 9 | 24/24 | 50 |
PG19 | PG19-14 | 10-14 | 25 | 9 | 27/24 | 50 |
PG21 | PG21-18 | 13-18 | 28.3 | 9 | 30/30 | 50 |
PG25 | PG25-22 | 15-22 | 32 | 10 | 35/35 | 50 |
PG29 | PG29-25 | 18-25 | 37 | 11 | 40/40 | 50 |
PG36 | PG36-33 | 25-33 | 47 | 11 | 50/50 | 50 |
PG42 | PG42-38 | 32-38 | 54 | 13 | 57/57 | 50 |
PG48 | PG48-44 | 37-44 | 59.3 | 14 | 64/64 | 50 |
PG63 | PG63-52 | 42-52 | 72 | 16 | 78/78 | 50 |
