Thread specifications: Metric thread, PG thread, G(PF) thread. (Threads can be customized)
Color: Black, gray, other colors can be customized.
Operating temperature: -40℃ to 100℃
Product features:

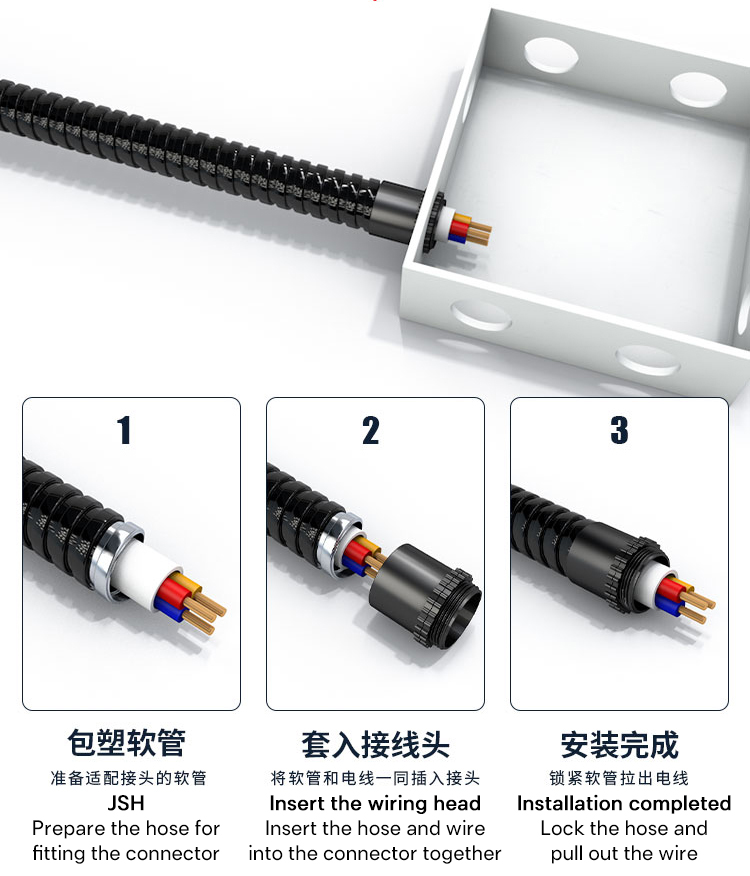

The nylon quick connector not only retains the advantage of high tightening nut pulling force, but also provides fast and convenient installation. The product design allows any corrugated pipe to slide in easily, and the corrugated pipe is clamped by the tightening nut to prevent it from falling off. This action is matched with the high - toughness nylon corrugated pipe series.
Product materials:
Made of UL - approved nylon PA66 with a fire - resistance rating of UL94V - 2. UL - approved fire - resistant 94V - 0 nylon PA66 material can be customized.
Exploded view:
Technical parameters:
PG | ||||||
Thread specification | Specifications | Matching Pipe | Thread outer diameter | Thread length | Packaging | |
PG7 | PG7-AD10.0 | AD10.0 | 1/4" | 12.5 | 9 | 50 |
PG9 | PG9-AD10.0 | AD10.0 | 1/4" | 15.2 | 9 | 50 |
PG11 | PG11-AD13.0 | AD13.0 | 5/16" | 18.6 | 10 | 50 |
PG13.5 | PG13.5-AD15.8 | AD15.8 | 3/8" | 20.4 | 10 | 50 |
PG13.5-AD18.5 | AD18.5 | 3/8" | 20.4 | 10 | 50 | |
PG16 | PG16-AD15.8 | AD15.8 | 3/8" | 22.5 | 11 | 50 |
PG16-AD18.5 | AD18.5 | 3/8" | 22.5 | 11 | 50 | |
PG16-AD21.2 | AD21.2 | 1/2" | 22.5 | 11 | 50 | |
PG21 | PG21-AD21.2 | AD21.2 | 1/2" | 28.3 | 12 | 50 |
PG21-AD25.0 | AD25.0 | 3/4" | 28.3 | 12 | 50 | |
PG21-AD28.5 | AD28.5 | 3/4" | 28.3 | 12 | 50 | |
PG29 | PG29-AD34.5 | AD34.5 | 1" | 37 | 13 | 20 |
PG36 | PG36-AD42.5 | AD42.5 | 1 1/4" | 47 | 13 | 10 |
PG42 | PG42-AD42.5 | AD42.5 | 1 1/4" | 54 | 16 | 10 |
PG48 | PG48-AD54.5 | AD54.5 | 2" | 59.3 | 16 | 10 |
