Thread specifications: Metric, PG, G (PF) and NPT.
Static temperature: -40℃ - +100℃, up to +120℃ for a short time; Dynamic: -20℃ - +80℃, up to +100℃ for a short time.
Product features:
This intelligent extension spring coil, when extended, can achieve a protective effect similar to that of a sleeve. It can not only achieve waterproof and tensile effects, but also prevent the wire from having a dangerous bending angle. The nickel-plated material is corrosion-resistant and resistant to acids and alkalis. This new concept of a new connector can be applied to all wire outlet fields.
Product materials:
Part A.C.F is made of high-grade copper alloy with nickel plating, and parts B and D are made of high and low temperature resistant silica gel.
Protection level:
Within the specified bayonet range, use an O-ring to fasten the fastening head to IP68 - 5Bar.

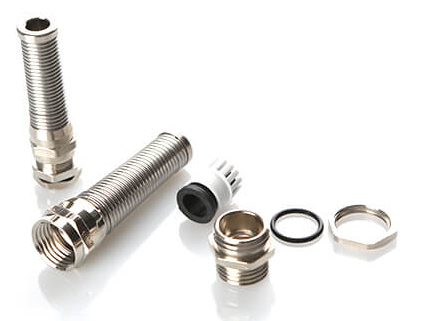

Physical decomposition diagram:
Technical parameters:
Flexible protection brass cable joint | |||||
Metric thread | |||||
Thread specification | Specification | Cable range (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (pcs/package) |
M12 | M12*1.5 | 3-6.5 | 6 | 14 | 50 |
M6 | M16*1.5 | 4-8 | 6 | 18 | 50 |
M18 | M18*1.5 | 5-10 | 6 | 20 | 50 |
M20 | M20*1.5 | 6-12 | 6.5 | 22 | 50 |
M25 | M25*1.5 | 12-16 | 7 | 28 | 50 |
German standard thread | |||||
Thread specification | Specification | Cable range (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (pcs/package) |
PG7 | PG7 | 3-6.5 | 5 | 14 | 50 |
PG9 | PG9 | 4-8 | 6 | 18 | 50 |
PG11 | PG11 | 5-10 | 6 | 20 | 50 |
PG13.5 | PG13.5 | 6-12 | 6.5 | 22 | 50 |
PG16 | PG16 | 10-14 | 6.5 | 24 | 50 |
PG21 | PG21 | 13-18 | 7 | 30 | 50 |
British standard thread | |||||
Thread specification | Specification | Cable range (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (pcs/package) |
G1/4 | G1/4 | 3-6.5 | 6 | 14 | 50 |
G3/8 | G3/8 | 4-8 | 7 | 18 | 50 |
G1/2 | G1/2 | 6-12 | 8 | 22 | 50 |
G3/4 | G3/4 | 12-16 | 11 | 28 | 50 |
American standard thread | |||||
Thread specification | Specification | Cable range (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (pcs/package) |
NPT1/4 | NPT1/4 | 3-6.5 | 6 | 14 | 50 |
NPT3/8 | NPT3/8 | 4-8 | 7 | 18 | 50 |
NPT1/2 | NPT1/2 | 6-12 | 8 | 22 | 50 |
NPT3/4 | NPT3/4 | 12-16 | 11 | 28 | 50 |
