Product Overview:
A waterproof connector is a connector that can be applied in water - containing environments. It can ensure that the internal mechanical and electrical properties of the connector can be used normally under a certain water pressure.
Applications:
Widely used in outdoor waterproof projects, LED street lights, tunnel lights, subways, bridges, urban lighting projects, home appliances such as heaters, electric heaters, etc., power tools, outdoor LED lights, outdoor lamps, water pumps, buried lights, underwater lighting, etc.
Features:
The rubber wire is soft, has good elasticity, is resistant to high temperatures, oil, and cold. It can withstand high external forces, has high weather resistance, is especially suitable for outdoor projects, places with oil contact or harsh environments, has a long lifespan, and is resistant to aging.
Product Selection:
The M16 rubber - coated waterproof connector is safe, reliable, and of guaranteed quality! The number of cores can be selected from 2 - 5 cores to meet various needs of customers!

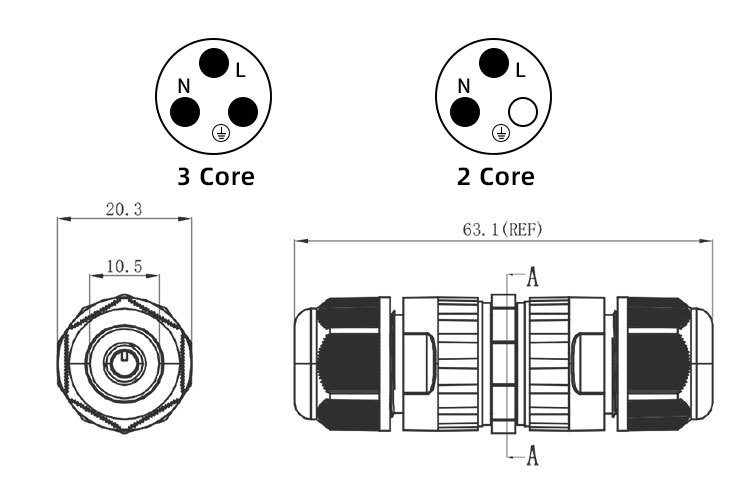

Overall dimensions:
Similar product parameters:
Name | Number of cores | Voltage | Electric current | Line-pressing range | Incoming line range |
M16 | 2/3 core | 400V | 16A | 0.5-1.5MM² | 3-6.5MM |
M20 | 2/3 core | 400V | 24A | 0.5-2.5MM² | 5-8MM |
M25 | 2/3/4/5 core | 450V | 40A | 0.5-2.5MM² | 5-8MM |
Product decomposition:
