Product Overview:
Product Name: End-Mounted Metal Connector
Thread Specification: Metric
Usage Method: Insertion and Locking
Product Features:
1. Zinc alloy is rust and corrosion resistant, and acid and alkali resistant.
2. Inner locking buckle design, direct insertion and bayonet connection, ready to use with one insertion and one lock.
3. Quick-installation connector, simply insert the groove component, convenient, worry-free and fast to install.
4. Small positive and negative difference in threads, customized non-standard products are acceptable.
5. Precision workmanship, fits the corrugated pipe well and won't fall off even when pulled.
Product parameters:
Model | Bellows | Metric system | Number |
DN16-AD15.8/M20 | AD15.8 | M20 | 10 |
DN16-AD18.5/M20 | AD18.5 | M20 | 10 |
DN16-AD21.2/M20 | AD21.2 | M20 | 10 |
DN20-AD15.8/M20 | AD15.8 | M20 | 10 |
DN20-AD18.5/M20 | AD18.5 | M20 | 10 |
DN20-AD21.2/M20 | AD21.2 | M20 | 10 |
DN20-AD25/M25 | AD25 | M25 | 10 |
DN20-AD28.5/M25 | AD28.5 | M25 | 10 |
DN25-AD21.2/M25 | AD21.2 | M25 | 10 |
DN25-AD25/M25 | AD25 | M25 | 10 |
DN25-AD28.5/M32 | AD28.5 | M32 | 10 |
DN25-AD34.5/M32 | AD34.5 | M32 | 10 |
DN32-AD28.5/M32 | AD28.5 | M32 | 10 |
DN32-AD34.5/M32 | AD34.5 | M32 | 5 |
DN32-AD42.5/M40 | AD42.5 | M40 | 5 |
DN40-AD42.5/M40 | AD42.5 | M40 | 5 |
DN40-AD54.5/M50 | AD54.5 | M50 | 5 |
DN50-AD54.5/M63 | AD54.5 | M63 | 5 |

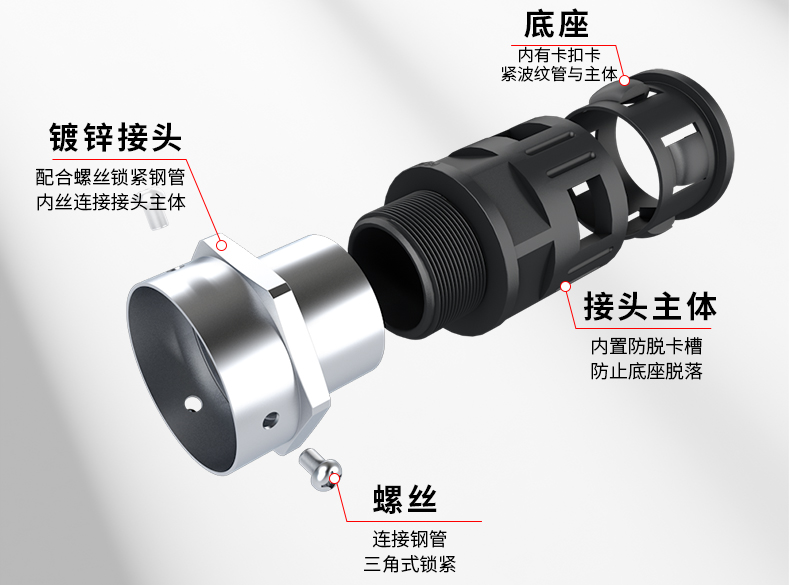

Product decomposition:

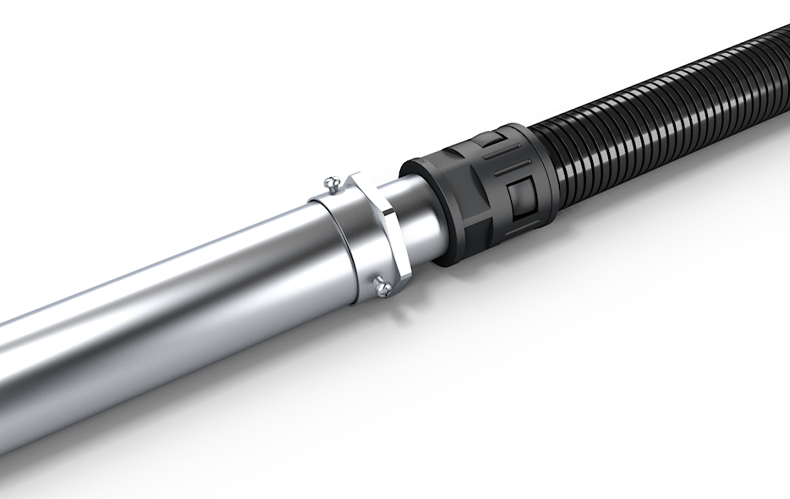

Joint matching display:

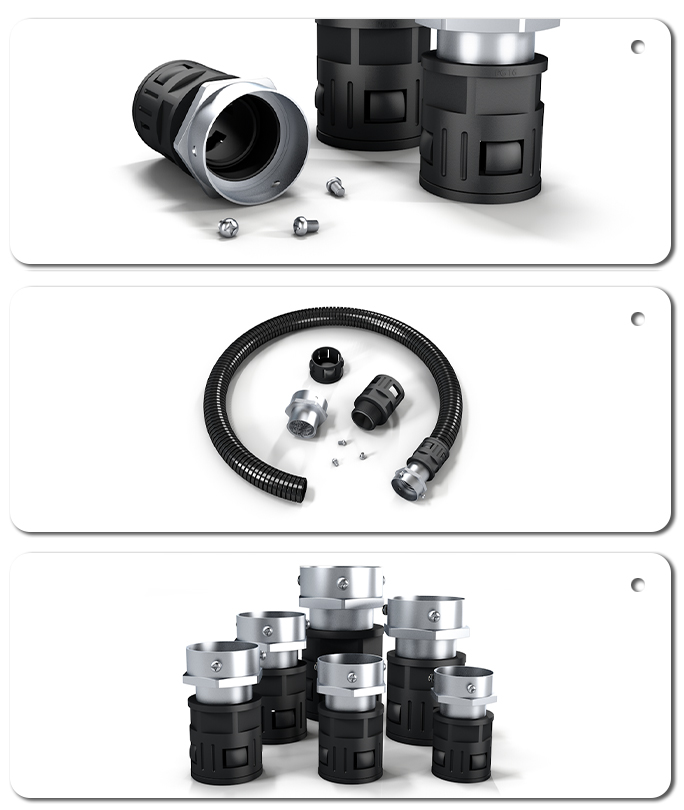

Product display:
