Protection level: IP68 (with tightened parts and sealed components)
Thread specification: British thread G (PF/BPSP/PS)
Material: Nylon PA6; Sealing: Nitrile rubber
Working temperature: Static: -40 ℃ to 100 ℃, short-term to 120 ℃; Dynamic: -20 ℃ to 80 ℃, short-term to 100 ℃
Product color: gray RAL7035; Black RAL9005, please inquire about other colors
Characteristic:
The special design of clamping molds and rubber parts, wide range of cable clamping, super strong tensile resistance, waterproof, dustproof, strong resistance to salt, acid, alkali, alcohol, grease, and universal solvents.
Note: For special sizes and models, please contact us.

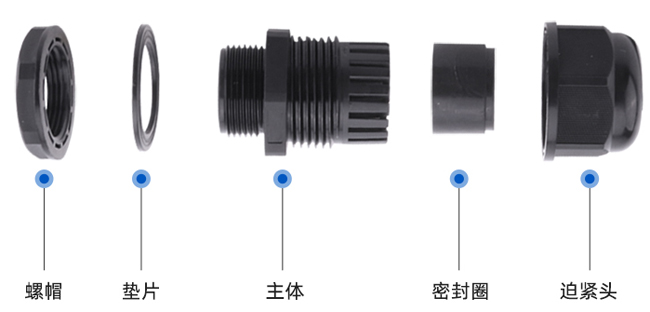

Decomposition:
Technical parameters:
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
G(PF)1/4" | GA1/4-5 | 3-5.5 | 13.157 | 8.5 | 19/19 | 50 |
GA1/4-8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 | |
G(PF)3/8" | GA3/8-7 | 4-7 | 16.662 | 10 | 22/22 | 50 |
GA3/8-10 | 6-10 | 16.662 | 10 | 22/22 | 50 | |
G(PF)1/2" | GA1/2-9 | 5-9 | 20.955 | 10 | 27/24 | 50 |
GA1/2-12.5 | 6-12.5 | 20.955 | 10 | 27/24 | 50 | |
G(PF)3/4" | GA3/4-13 | 7-13 | 26.441 | 12 | 36/33 | 50 |
GA3/4-18 | 13-18 | 26.441 | 12 | 36/33 | 50 | |
G(PF)1" | GA1-21 | 15-22 | 33.249 | 15 | 46/41 | 20 |
GA1-25 | 18-25 | 33.249 | 15 | 46/41 | 20 | |
G(PF)1 1/4" | GA1 1/4-25.5 | 17-25.5 | 41.91 | 15 | 57/22 | 10 |
GA1 1/4-31 | 24-31 | 41.91 | 15 | 57/22 | 10 | |
G(PF)1 1/2" | GA1 1/2-33 | 25-33 | 48 | 22 | 60/62 | 10 |
GA1 1/2-41 | 31-41 | 48 | 22 | 60/62 | 10 | |
G(PF)2" | GA2-46 | 39-46 | 60 | 25 | 72/65 | 10 |
GA2-51 | 44-51 | 60 | 25 | 72/65 | 10 |
