Thread Specification: German thread PG.
Protection Rating: IP68
Color: Black, gray, and custom colors available upon request.
Material: Parts A, C, and E are made of UL-approved nylon PA66; parts B and D are made of nitrile rubber (NBR).
Operating Temperature: Static: 40～100°C, with momentary heat resistance up to 120°C.Dynamic: 20～80°C, with momentary heat resistance up to 100°C.
Characteristic:
The special design of the clamping mold and rubber components ensures a wide range of cable clamping, superior tensile resistance, waterproofing, dustproofing, and strong resistance to salt, acid, alkali, alcohol, grease, and general solvents.
Note: For special sizes and models, please contact us.

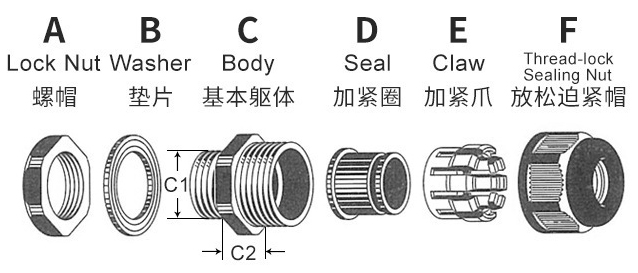

Decomposition diagram:

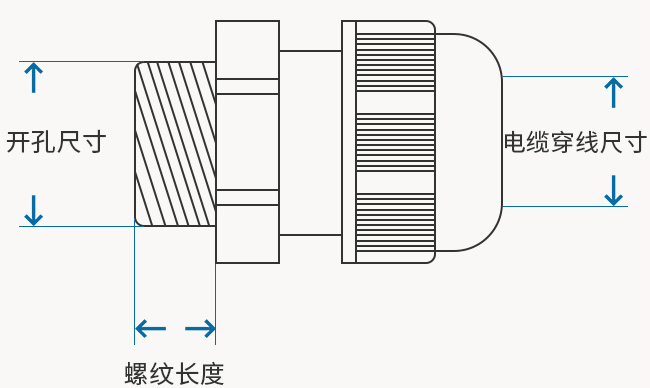

Hole size:
Technical parameters:
Thread specification | specifications | cable range | Outer diameter of thread | Thread | Wrench diameter | package |
PG7 | PGA7-5.5 | 3-5.5 | 12.5 | 8 | 17/19 | 50 |
PGA7-8 | 4-8 | 12.5 | 8 | 17/19 | 50 | |
PG9 | PGA9-5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
PGA9-8 | 4-8 | 15.2 | 8.2 | 22/19 | 50 | |
PG11 | PGA11-7 | 4-7 | 18.6 | 10 | 24/22 | 50 |
PGA11-10 | 6-10 | 18.6 | 10 | 24/22 | 50 | |
PG13.5 | PGA13.5-9 | 5-9 | 20.4 | 10 | 27/24 | 50 |
PGA13.5-12.5 | 8-12.5 | 20.4 | 10 | 27/24 | 50 | |
PG16 | PGA16-11 | 7-11 | 22.5 | 11 | 30/27 | 50 |
PGA16-14 | 8-14 | 22.5 | 11 | 30/27 | 50 | |
PG21 | PGA21-16 | 10-16 | 28.3 | 12 | 36/33 | 50 |
PGA21-18 | 12-18 | 28.3 | 12 | 36/33 | 50 | |
PG29 | PGA29-22 | 15-22 | 37 | 12 | 46/41 | 20 |
PGA29-25 | 18-25 | 37 | 12 | 46/41 | 20 | |
PG36 | PGA36-26 | 20-26 | 47 | 14 | 57/52 | 10 |
PGA36-31 | 24-31 | 47 | 14 | 57/52 | 10 | |
PG42 | PGA42-33 | 25-33 | 54 | 15 | 64/62 | 10 |
PGA42-41 | 31-41 | 54 | 15 | 64/62 | 10 | |
PG48 | PGA48-46 | 39-46 | 59.3 | 18.2 | 70/75 | 10 |

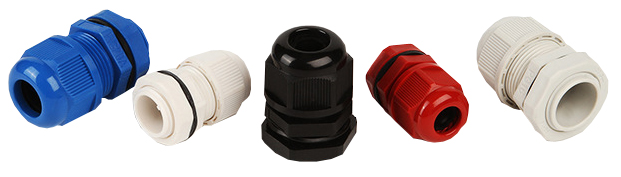

Color options:
