Overview:
The explosion-proof cable gland is made of brass or stainless steel. Please indicate if stainless steel is required. The cable is sealed with packing. It has good protection performance. It has the characteristics of easy use and installation, safe and reliable structure, and superior explosion-proof performance. It meets the requirements of GB3836 - 2000 and IEC60079 standards.
Scope of application:
Hazardous locations in Zone 1 and Zone 2.
Explosive gas environments of Class IIA, IIB, and IIC.
Product features:
Model | Cable outer diameter | L(mm) | Explosion-proof mark | Protection level |
BTL-G1/2" | 3-8 | 72 | Exd IIBT4 | IP66 |
BTL-G3/4" | 10-14 | 74 | Exd IIBT4 | IP66 |
BTL-G1" | 11-19 | 84 | Exd IIBT4 | IP66 |
BTL-G11/4" | 17-26 | 88 | Exd IIBT4 | IP66 |
BTL-G11/2" | 22-32 | 93 | Exd IIBT4 | IP66 |
BTL-G2" | 29-44 | 95 | Exd IIBT4 | IP66 |
BTL-G21/2" | 40-56 | 103 | Exd IIBT4 | IP66 |
BTL-G3" | 52-68 | 126 | Exd IIBT4 | IP66 |

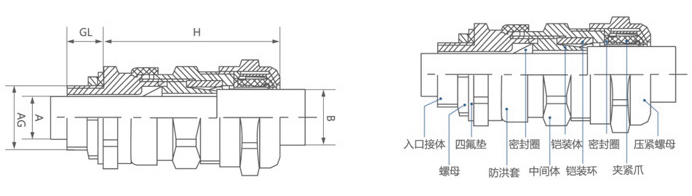

Dimensions:

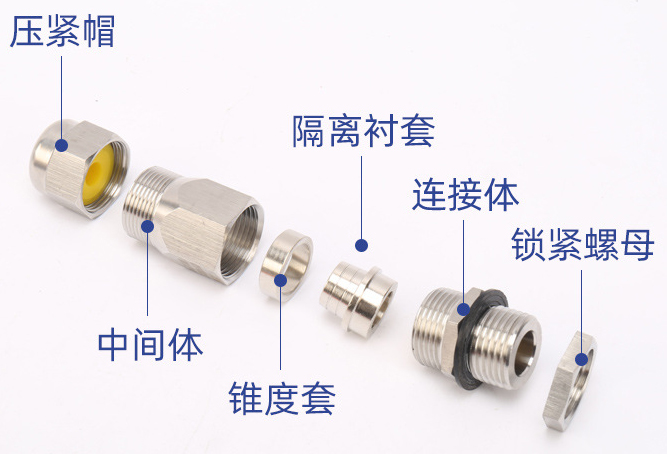

Product breakdown:
