Thread specifications: Metric thread, PG thread, G(PF) thread (threads can be customized).
Color: Black, gray, other colors can be customized.
Operating temperature: -40℃ to 100℃
Product features:
The nylon quick connector not only retains the advantage of high tightening nut pulling force, but also provides quick and convenient installation. The product design allows any corrugated pipe to slide in easily, and the corrugated pipe is clamped by the tightening nut to prevent it from falling off. This action is matched with the high-toughness nylon corrugated pipe series.
Product material:
Made of UL-approved nylon PA66 with a fire rating of UL94V-2. UL-approved fireproof 94V-0 nylon PA66 material can be customized.

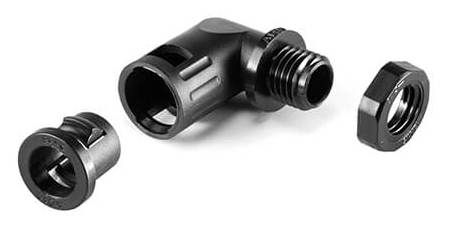

Half-thread decomposition diagram:

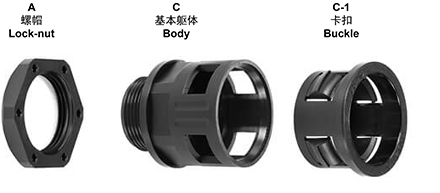

Full thread exploded view:
Technical parameters:
Metric thread | ||||||
Screw thread specifications | Specifications | Matching Pipc | Thread outer diameter | Thread length | Package | |
M12*1.5 | M12-AD10.0 | AD10.0 | 1/4" | 12 | 10 | 50 |
M12-AD13.0 | AD13.0 | 5/16" | 12 | 10 | .50 | |
M16*1.5 | M16-AD13.0 | AD13..0 | 5/16" | 16 | 10 | 50 |
M16-AD15.8 | AD15.8 | 3/8" | 16 | 10 | 50 | |
M18*1.5 | M18-AD13.0 | AD13.0 | 5/16" | 18 | 12.5 | 50 |
M18-AD15.8 | AD15.8 | 3/8" | 18 | 12.5 | 50 | |
M20*1.5 | M20-AD15.8 | AD15.8 | 3/8" | 20 | 10 | 50 |
M20-AD18.5 | AD18.5 | 3/8" | 20 | 15 | 50 | |
M20-AD21.2 | AD21.2 | 1/2" | 20 | 10 | 50 | |
M22*1.5 | M22-AD18.5 | AD18.5 | 3/8" | 22 | 10 | 50 |
M24*1.5 | M24-AD21.2 | AD21.2 | 1/2" | 24 | 13 | 50 |
M25*1.5 | M25-AD21.2 | AD21.2 | 1/2" | 25 | 13 | 50 |
M25-AD25 | AD25 | 3/4" | 25 | 13 | 50 | |
M25-AD28.5 | AD28.5 | 3/4" | 25 | 13 | 50 | |
M27*1.5 | M27-AD28.5 | AD28.5 | 3/4" | 27 | 13 | 50 |
M32*1.5 | M32-AD28.5 | AD28.5 | 3/4" | 32 | 13 | 50 |
M32-AD34.5 | AD34.5 | 1" | 32 | 14 | 50 | |
M36*1.5 | M36-AD34.5 | AD34.5 | 1" | 36 | 14 | 50 |
M40*1.5 | M40-AD34.5 | AD34.5 | 1" | 40 | 15 | 20 |
M40-AD42.5 | AD42.5 | 1 1/4" | 40 | 15 | 12 | |
M48*1.5 | M48-AD42.5 | AD42.5 | 1 1/4" | 48 | 15 | 10 |
M50*1.5 | M50-AD54.5 | AD54.5 | 2" | 50 | 16 | 10 |
M63*1.5 | M63-AD54.5 | AD54.5 | 2" | 63 | 16 | 10 |
German standard thread | ||||||
Screw thread specifications | Specifications | Matching Pipc | Thread outer diameter | Thread length | Package | |
PG7 | PG7-AD10.0 | AD10.0 | 1/4" | 12.5 | 8.5 | 50 |
PG9 | PG9-AD13.0 | AD13.0 | 5/16" | 15.2 | 10 | 50 |
PG11 | PG11-AD15.8 | AD15.8 | 3/8" | 18.6 | 12.5 | 50 |
PG13.5 | PG13.5-AD15.8 | AD15.8 | 3/8" | 20.4 | 12.5 | 50 |
PG13.5-AD18.5 | AD18.5 | 3/8" | 20.4 | 12.5 | 50 | |
PG16 | PG16-AD21.2 | AD21.2 | 1/2" | 22.5 | 13 | 50 |
PG21 | PG21-AD25.0 | AD25.0 | 3/4" | 28.3 | 13 | 50 |
PG21-AD28.5 | AD28.5 | 3/4" | 28.3 | 13 | 20 | |
PG29 | PG29-AD34.5 | AD34.5 | 1" | 37 | 14 | 10 |
PG36 | PG36-AD42.5 | AD42.5 | 1 1/4" | 47 | 15 | 10 |
PG42 | PG42-AD42.5 | AD42.5 | 1 1/4" | 54 | 16 | 10 |
PG48 | PG48-AD54.5 | AD54.5 | 2" | 59.3 | 16 | 10 |
British standard thread | ||||||
Screw thread specifications | Specifications | Matching Pipc | Thread outer diameter | Thread length | Package | |
G(PF)1/4" | G(PF)1/4"-AD10.0 | AD10.0 | 1/4" | 13.1 | 8.5 | 50 |
G(PF)3/8" | G(PF)3/8"-AD13.0 | AD13.0 | 5/16" | 16.6 | 10 | 50 |
G(PF)3/8"-AD15.8 | AD15.8 | 3/8" | 16.6 | 12.5 | 50 | |
G(PF)1/2" | G(PF)1/2"-AD15.8 | AD15.8 | 3/8" | 20.9 | 12.5 | 50 |
G(PF)1/2"-AD18.5 | AD18.5 | 3/8" | 20.9 | 12.5 | 50 | |
G(PF)1/2"-AD21.2 | AD21.2 | 1/2" | 20.9 | 13 | 50 | |
G(PF)3/4" | G(PF)3/4"-AD21.2 | AD21.2 | 1/2" | 26.4 | 13 | 50 |
G(PF)3/4"-AD25.0 | AD25.0 | 3/4" | 26.4 | 13 | 50 | |
G(PF)3/4"-AD28.5 | AD28.5 | 3/4" | 26.4 | 13 | 50 | |
G(PF)1" | G(PF)1"-AD34.5 | AD34.5 | 1" | 33.2 | 14 | 20 |
G(PF)1 1/4" | G(PF)1 1/4"-AD42.5 | AD42.5 | 1 1/4" | 41.9 | 15 | 10 |
G(PF)1 1/2" | G(PF)1 1/2"-AD42.5 | AD42.5 | 1 1/4" | 48 | 16 | 10 |
G(PF)2" | G(PF)2"-AD54.5 | AD54.5 | 2" | 60 | 16 | 10 |
