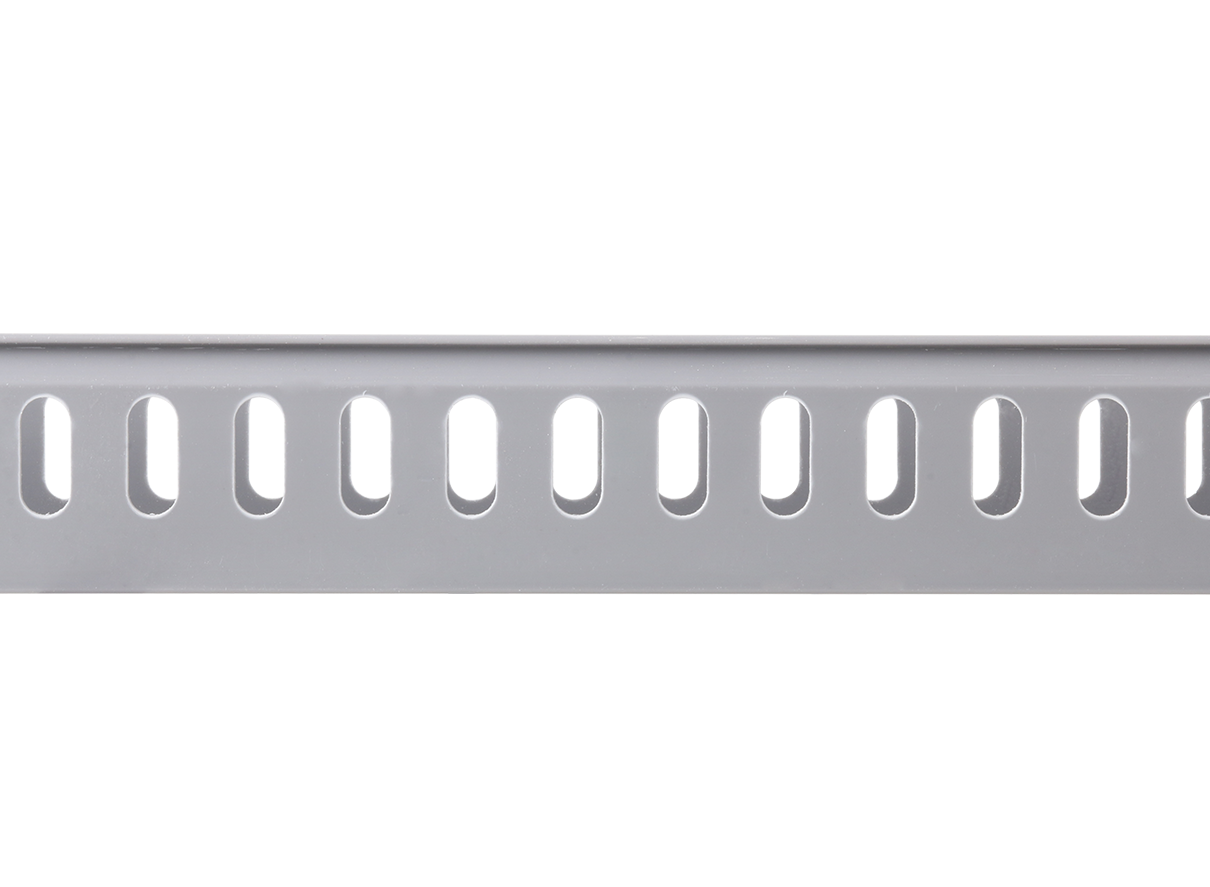

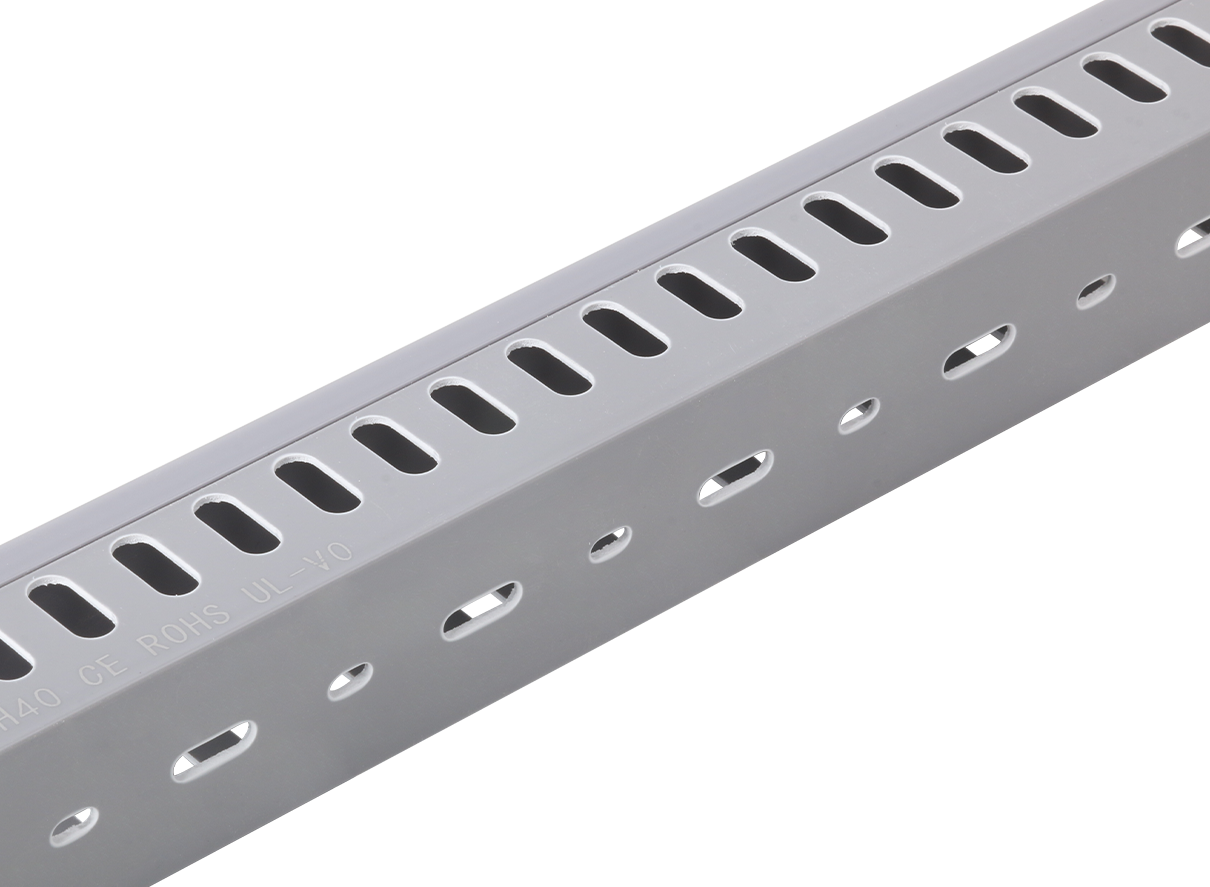

Wide slot / finger design provides greater side wall rigidity and can be used with a wide range of wire bundle sizes
Product MaterialMade of rigid PVC
Product CertificationUL: E306674, CE: EN50085, RoHS,REACH.
Work Temperature-40 ℃ to 60 ℃
Flame Retardant GradeUL94 Flammability rating of V-0
Available Color Gray,Blue and Other Special Colors
Length2M (refre to HVDNF series)
The reverse buckle groove cover and groove body design combination will never fall off, and the joint surface is smooth, without cutting hands or rubbing nearby wiring
The wiring duct is not easily broken, deformed, or discolored within 65 ℃, making assembly time-saving and convenient
Low outlet hole, easy combination, simple disassembly, easy wiring
Item No. | width x High | Finger | Slot | Number of meters | Wirecapability | Carton Size | Weight | Standard | Standard | |
Gray | Blue | |||||||||
VDN4020C | VDN4020CW | 40×20 | 7 | 6 | 100 | 20~30pcs | 201×15×23 | 29 | 1.3 | Pcs/Branch 2M |
VDN4025C | VDN4025CW | 40×25 | 7 | 6 | 100 | 20~30pcs | 201×15×24 | 31 | 1.4 | |
VDN4030C | VDN4030CW | 40×30 | 7 | 6 | 100 | 25~35pcs | 201×17×24 | 33 | 1.4 | |
VDN4035C | VDN4035CW | 40×35 | 7 | 6 | 100 | 30~40pcs | 201×20×25 | 37 | 1.4 | |
VDN4040C | VDN4040CW | 40×40 | 7 | 6 | 100 | 55~65pcs | 201×23×26 | 41 | 1.4 | |
VDN4050C | VDN4050CW | 40×50 | 7 | 6 | 100 | 60~75pcs | 201×30×26 | 46 | 1.4 | |
VDN4060C | VDN4060CW | 40×60 | 7 | 6 | 100 | 90~100pcs | 201×33×26 | 51 | 1.4 | |
VDN5020C | VDN5020CW | 50×20 | 8 | 6 | 100 | 15~25pcs | 201×13×30 | 33 | 1.5 | |
VDN5025C | VDN5025CW | 50×25 | 8 | 6 | 100 | 15~25pcs | 201×15×30 | 35 | 1.5 | |
VDN5030C | VDN5030CW | 50×30 | 8 | 6 | 100 | 25~40pcs | 201×18×30 | 38 | 1.5 | |
VDN5035C | VDN5035CW | 50×35 | 8 | 6 | 100 | 35~55pcs | 201×21×30 | 41 | 1.5 | |
VDN5040C | VDN5040CW | 50×40 | 8 | 6 | 100 | 55~65pcs | 201×22×30 | 46 | 1.5 | |
VDN5045C | VDN5045CW | 50×45 | 8 | 6 | 100 | 70~80pcs | 201×26×30 | 47 | 1.5 | |
VDN5050C | VDN5050CW | 50×50 | 8 | 6 | 100 | 80~90pcs | 201×29×30 | 50 | 1.5 | |
VDN5055C | VDN5055CW | 50×55 | 8 | 6 | 100 | 80~90pcs | 201×31×30 | 51 | 1.5 | |
VDN5060C | VDN5060CW | 50×60 | 8 | 6 | 100 | 100~110pcs | 201×35×30 | 58 | 1.5 | |
VDN5080C | VDN5080CW | 50×80 | 8 | 6 | 60 | 160~180pcs | 201×28×30 | 43 | 1.6 | |
VDN50100C | VDN50100CW | 50×100 | 8 | 6 | 60 | 200~250pcs | 201×33×31 | 51 | 1.6 | |
VDN6025C | VDN6025CW | 60×25 | 8 | 6 | 100 | 35~50pcs | 201×16×36 | 40 | 1.6 | |
VDN6030C | VDN6030CW | 60×30 | 8 | 6 | 100 | 60~80pcs | 201×19×36 | 44 | 1.6 | |
VDN6035C | VDN6035CW | 60×35 | 8 | 6 | 100 | 90~105pcs | 201×21×36 | 45 | 1.6 | |
VDN6040C | VDN6040CW | 60×40 | 8 | 6 | 100 | 100~115pcs | 201×23×36 | 50 | 1.6 | |
VDN6045C | VDN6045CW | 60×45 | 8 | 6 | 100 | 110~125pcs | 201×26×36 | 51 | 1.6 | |
VDN6050C | VDN6050CW | 60×50 | 8 | 6 | 100 | 120~130pcs | 201×28×36 | 56 | 1.6 | |
VDN6060C | VDN6060CW | 60×60 | 8 | 6 | 80 | 120~130pcs | 201×33×29 | 52 | 1.6 | |
VDN6080C | VDN6080CW | 60×80 | 8 | 6 | 60 | 180~210pcs | 201×27×36 | 52 | 1.6 | |
VDN60100C | VDN60100CW | 60×100 | 10 | 8 | 48 | 240~280pcs | 201×33×28 | 46 | 1.6 | |
VDN8025C | VDN8025CW | 80×25 | 10 | 8 | 60 | 100~120pcs | 201×16×27 | 30 | 1.7 | |
VDN8030C | VDN8030CW | 80×30 | 10 | 8 | 60 | 110~125pcs | 201×18×27 | 31 | 1.7 | |
VDN8035C | VDN8035CW | 80×35 | 10 | 8 | 60 | 110~130pcs | 201×21×27 | 34 | 1.7 | |
VDN8040C | VDN8040CW | 80×40 | 10 | 8 | 60 | 140~160pcs | 201×23×27 | 34 | 1.7 | |
VDN8045C | VDN8045CW | 80×45 | 10 | 8 | 60 | 140~160pcs | 201×26×28 | 40 | 1.8 | |
VDN8050C | VDN8050CW | 80×50 | 10 | 8 | 60 | 160~180pc5 | 201×28×28 | 42 | 1.8 | |
VDN8055C | VDN8055CW | 80×55 | 10 | 8 | 60 | 160~180pcs | 201×31×28 | 42 | 1.8 | |
VDN8060C | VDN8060CW | 80×60 | 10 | 8 | 60 | 180~210pcs | 201×33×28 | 45 | 1.8 | |
VDN8080C | VDN8080CW | 80×80 | 10 | 8 | 48 | 230~280pcs | 201×31×28 | 46 | 1.8 | |
VDN80100C | VDN80100CW | 80×100 | 10 | 8 | 36 | 250~340pcs | 201×33×27 | 36 | 1.8 | |
VDN10033C | VDN10033CW | 100×33 | 11 | 9 | 60 | 130~165pcs | 201×22×33 | 36 | 1.8 | |
VDN10040C | VDN10040CW | 100×40 | 11 | 9 | 60 | 130~175pcs | 201×24×33 | 39 | 1.9 | |
VDN10050C | VDN10050CW | 100×50 | 11 | 9 | 60 | 220~250pcs | 201×28×33 | 46 | 1.9 | |
VDN10060C | VDN10060CW | 100×60 | 11 | 9 | 60 | 240~290pcs | 201×29×34 | 60 | 1.9 | |
VDN10080C | VDN10080CW | 100×80 | 11 | 9 | 36 | 260~350pcs | 201×27×34 | 35 | 2.0 | |
VDN100100C | VDN100100CW | 100×100 | 11 | 9 | 36 | 300~400pcs | 201×33×34 | 43 | 2.0 | |
We will arrange shipment within 2 working days after your successful payment. If the order includes customized goods, the actual estimated delivery time shall prevail.
Due to damages caused during transportation,
Non customized product size purchase error (buyer needs to bear the shipping cost for replacement)
Incorrect shipment, product does not match order
If there are no quality issues, customized products do not support returns or exchanges
