Screw specifications:
Metric teeth, PG teeth, G (PF) teeth. (Screw teeth can be customized)
Waterproof grade:
IP68-10
Working temperature:
Static -40 ℃ to 100 ℃, or instantly heat-resistant to 120 ℃. Dynamically -20 ℃ to 80 ℃, or instantly heat-resistant to 100 ℃
Product Features:
This product adopts a spiral anti torsion structure, mainly used in manual control or mobile devices to prevent excessive twisting of the outlet and greatly reduce operational hazards. The designed clamping ring and clamping claw, with a tight nut and loose grip, will make a "click" sound when tightened and prevent it from tipping over, which can firmly fix the cable and expand the clamping range of the cable.
Product Material:
A. Parts C, E, and F are made of UL approved nylon PA66 with a fire rating of UL94V-2, and UL approved fire rated 94V-0 nylon PA66 material can be customized. B. Part D is made of EPDM weather resistant rubber, which can be customized with cold resistant, high temperature resistant, chemical resistant and other rubber materials.
Color:
Black, gray, other colors can be customized.

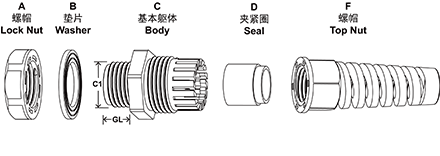

Half thread decomposition diagram:

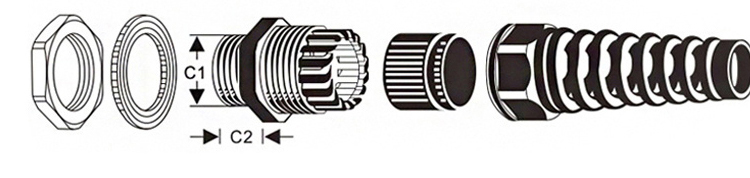

Half thread decomposition diagram:
Technical parameters:
Twist resistant nylon cable joint (Type A split) | ||||||
Metric | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
M12*1.5 | M12A-P-5 | 2-5 | 12 | 8.5 | 18/19 | 50 |
M12A-P-7 | 4-7 | 12 | 8.5 | 18/19 | 50 | |
M16*1.5 | M16AS-P-8 | 4-8 | 16 | 10 | 22/19 | 50 |
M16ASL-P-8 | 4-8 | 16 | 15 | 22/19 | 50 | |
M16A-P-7 | 4-7 | 16 | 10 | 22/22 | 50 | |
M16A-P-10 | 6-10 | 16 | 10 | 22/22 | 50 | |
M16AL-P-7 | 4-7 | 16 | 15 | 22/22 | 50 | |
M16AL-P-10 | 6-10 | 16 | 15 | 22/22 | 50 | |
M20*1.5 | M20AS-P-9 | 5-9 | 20 | 10 | 27/24 | 50 |
M20AS-P-12 | 6-12.5 | 20 | 10 | 27/24 | 50 | |
M20A-P-11 | 5-11 | 20 | 11 | 27/27 | 50 | |
M20A-P-13.5 | 8-13.5 | 20 | 11 | 27/27 | 50 | |
M20AL-P-11 | 5-11 | 20 | 15 | 27/27 | 50 | |
M20AL-P-13.5 | 8-13.5 | 20 | 15 | 27/27 | 50 | |
M22*1.5 | M22AL-P-11 | 7-11 | 22 | 10 | 29/27 | 50 |
M22AL-P-14 | 9-14 | 22 | 10 | 29/27 | 50 | |
M25*1.5 | M25A-P-16 | 10-16 | 25 | 11.6 | 33/33 | 50 |
M25A-P-18 | 13-18 | 25 | 11.6 | 33/33 | 50 | |
M25AL-P-16 | 10-16 | 25 | 15 | 33/33 | 50 | |
M25AL-P-18 | 13-18 | 25 | 15 | 33/33 | 50 | |
German made teeth | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
PG7 | PG7A-P-6 | 3-6 | 12.5 | 8 | 17/19 | 50 |
PG7A-P-8 | 4-7 | 12.5 | 8 | 17/19 | 50 | |
PG9 | PG9A-P-5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
PG9A-P-7.5 | 4-7.5 | 16.2 | 8.2 | 22/19 | 50 | |
PG11 | PG11A-P-7 | 3-7 | 18.6 | 10 | 24/22 | 50 |
PG11A-P-10 | 6-10 | 18.6 | 10 | 24/22 | 50 | |
PG13.5 | PG13.5A-P-9 | 5-9 | 20.4 | 10 | 27/24 | 50 |
PG13.5A-P-12.5 | 6-12.5 | 20.4 | 10 | 27/24 | 50 | |
PG16 | PG16A-P-11 | 5-11 | 22.5 | 10.8 | 30/27 | 50 |
PG16A-P-14 | 8-14 | 22.5 | 10.8 | 30/27 | 50 | |
PG21 | PG21A-P-15.5 | 10-15.5 | 28.3 | 12 | 36/33 | 50 |
PG21A-P-17.5 | 13-18 | 28.3 | 12 | 36/33 | 50 | |
BSW | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
G(PF)1/4" | G1/4A-P-5 | 3-5.5 | 13.157 | 8.5 | 19/19 | 50 |
G1/4A-P-8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 | |
G(PF)3/8" | G3/8A-P-7 | 3-7 | 16.7 | 10 | 22/22 | 50 |
G3/8A-P-10 | 6-10 | 16.7 | 10 | 22/22 | 50 | |
G(PF)1/2" | G1/2A-P-9 | 4-9 | 20.5 | 10 | 27/24 | 50 |
G1/2A-P-12.5 | 6-12.5 | 20.5 | 10 | 27/24 | 50 | |
G(PF)3/4" | G3/4A-P-16 | 10-16 | 26.4 | 12 | 36/33 | 50 |
G3/4A-P-18 | 13-18 | 26.4 | 12 | 36/33 | 50 | |
90 ° torsion resistant nylon cable waterproof joint | ||||||
Metric | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | 包装 |
M16*1.5 | M16A-P-7 | 4-7 | 16 | 10 | 22/22 | 50 |
M16A-P-10 | 6-10 | 16 | 10 | 22/22 | 50 | |
M20*1.5 | M20A-P-11 | 5-11 | 20 | 15 | 27/27 | 50 |
M20A-P-13.5 | 8-13.5 | 20 | 15 | 27/27 | 50 | |
M25*1.5 | M25A-P-16 | 10-16 | 25 | 15 | 33/33 | 20 |
M25A-P-18 | 13-18 | 25 | 15 | 33/33 | 20 | |
