Thread Specification: Metric, PG thread, G (PF) thread. (Thread specifications can be customized)
Waterproof Rating: IP68-10
Working Temperature: Static -40°C to 100°C, or can withstand heat up to 120°C for a short time. Dynamic -20°C to 80°C, or can withstand heat up to 100°C for a
short time.
Colors: Black, Gray, other colors can be customized.
Product Features:
The wave pipe waterproof connector is water-resistant and truly maintains airtightness even when the wave pipe is pulled. It is widely used in mobile automation equipment and sealed environments, and is also fully applied in building wiring conduits. The wave pipe connector integrates the clamping jaws into the design of the clamping ring, and secures the high-pressure bellows through a tightening nut.
Product Material:
Parts A, C, E, F are made of UL-approved nylon PA66 for fire resistance (UL94V-2), and UL-approved fireproof 94V-0 nylon PA66 material can be customized. Parts B, D are made of ethylene propylene diene monomer (EPDM) weather-resistant rubber, and rubber with resistance to cold, heat, chemicals, etc., can be customized.

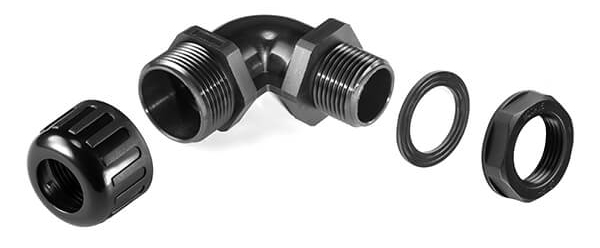

Assembly Diagram:

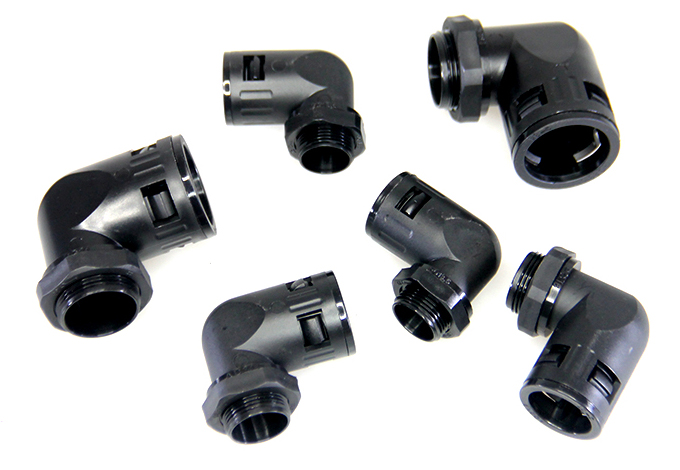

Product Display:
Technical parameters:
Metric system | ||||||
Thread specification | Specifications | Matching Pipe | Thread outer diameter | Thread length | Package | |
M12*1.5 | M12-AD10 | AD10.0 | 1/4" | 12 | 9 | 50 |
M16*1.5 | M16-AD13.0-ST | AD13.0 | 5/16" | 16 | 10 | 50 |
M16-AD13.0 | AD13.0 | 5/16" | 16 | 15 | 50 | |
M16-AD15.8-ST | AD15.8 | 3/8" | 16 | 10 | 50 | |
M16-AD15.8 | AD15.8 | 3/8" | 16 | 15 | 50 | |
M16-AD18.5-ST | AD18.5 | 3/8" | 16 | 10 | 50 | |
M16-AD18.5 | AD18.5 | 3/8" | 16 | 15 | 50 | |
M20*1.5 | M20-AD15.8-ST | AD15.8 | 3/8" | 20 | 10 | 50 |
M20-AD15.8 | AD15.8 | 3/8" | 20 | 15 | 50 | |
M20-AD18.5-ST | AD18.5 | 3/8" | 20 | 10 | 50 | |
M20-AD18.5 | AD18.5 | 3/8" | 20 | 15 | 50 | |
M20-AD21.2-ST | AD21.2 | 1/2" | 20 | 10 | 50 | |
M20-AD21.2 | AD21.2 | 1/2" | 20 | 15 | 50 | |
M25*1.5 | M25-AD21.2-ST | AD21.2 | 1/2" | 25 | 12 | 50 |
M25-AD21.2 | AD21.2 | 1/2" | 25 | 15 | 50 | |
M25-AD25-ST | AD25.0 | 3/4" | 25 | 12 | 50 | |
M25-AD25.0 | AD25.0 | 3/4" | 25 | 15 | 50 | |
M25-AD28.5-ST | AD28.5 | 3/4" | 25 | 12 | 50 | |
M25-AD28.5 | AD28.5 | 3/4" | 25 | 15 | 50 | |
M32*1.5 | M32-AD34.5-ST | AD34.5 | 1" | 32 | 12 | 20 |
M32-AD34.5 | AD34.5 | 1" | 32 | 15 | 20 | |
M40*1.5 | M40-AD42.5 | AD42.5 | 1 1/4" | 40 | 15 | 10 |
M50*1.5 | M50-AD42.5 | AD42.5 | 1 1/4" | 50 | 22 | 10 |
M50-AD54.5 | AD54.5 | 2" | 50 | 22 | 10 | |
M63*1.5 | M63-AD54.5 | AD54.5 | 2" | 63 | 25 | 10 |
PG | ||||||
Thread specification | Specifications | Matching Pipe | Thread outer diameter | Thread length | Package | |
PG7 | PG7-AD10.0 | AD10.0 | 1/4" | 12.5 | 9 | 50 |
PG9 | PG9-AD10.0 | AD10.0 | 1/4" | 15.2 | 9 | 50 |
PG11 | PG11-AD13.0 | AD13.0 | 5/16" | 18.6 | 10 | 50 |
PG13.5 | PG13.5-AD15.8 | AD15.8 | 3/8" | 20.4 | 10 | 50 |
PG13.5-AD18.5 | AD18.5 | 3/8" | 20.4 | 10 | 50 | |
PG16 | PG16-AD15.8 | AD15.8 | 3/8" | 22.5 | 11 | 50 |
PG16-AD18.5 | AD18.5 | 3/8" | 22.5 | 11 | 50 | |
PG16-AD21.2 | AD21.2 | 1/2" | 22.5 | 11 | 50 | |
PG21 | PG21-AD21.2 | AD21.2 | 1/2" | 28.3 | 12 | 50 |
PG21-AD25.0 | AD25.0 | 3/4" | 28.3 | 12 | 50 | |
PG21-AD28.5 | AD28.5 | 3/4" | 28.3 | 12 | 50 | |
PG29 | PG29-AD34.5 | AD34.5 | 1" | 37 | 13 | 20 |
PG36 | PG36-AD42.5 | AD42.5 | 1 1/4" | 47 | 13 | 10 |
PG42 | PG42-AD42.5 | AD42.5 | 1 1/4" | 54 | 16 | 10 |
PG48 | PG48-AD54.5 | AD54.5 | 2" | 59.3 | 16 | 10 |
G | ||||||
Thread specification | Specifications | Matching Pipe | Thread outer diameter | Thread length | Package | |
G(PF)1/4" | PF1/4-AD10.0 | AD10.0 | 1/4" | 13.1 | 9 | 50 |
G(PF)3/8" | PF3/8-AD13.0 | AD13.0 | 5/16" | 16.6 | 15 | 50 |
G(PF)1/2" | PF1/2-AD15.8 | AD15.8 | 3/8" | 20.9 | 15 | 50 |
PF1/2-AD18.5 | AD18.5 | 3/8" | 20.9 | 15 | 50 | |
PF1/2-AD21.2 | AD21.2 | 1/2" | 20.9 | 15 | 50 | |
PF1/2-AD25 | AD25.0 | 3/4" | 20.9 | 15 | 50 | |
G(PF)3/4" | PF3/4-AD21.2 | AD21.2 | 1/2" | 26.4 | 15 | 50 |
PF3/4-AD25.0 | AD25.0 | 3/4" | 26.4 | 15 | 50 | |
PF3/4-AD28.5 | AD28.5 | 3/4" | 26.4 | 15 | 50 | |
G(PF)1" | PF1-AD34.5 | AD34.5 | 1" | 33.2 | 15 | 20 |
G(PF)1 1/4" | PF1 1/4-AD42.5 | AD42.5 | 1 1/4" | 41.9 | 15 | 10 |
G(PF)1 1/2" | PF1 1/2-AD54.5 | AD54.5 | 2" | 48 | 15 | 10 |
G(PF)2" | PF2-AD54.5 | AD54.5 | 2" | 60 | 15 | 10 |
