Thread Specification: Metric, PG thread, G (PF) thread. (Thread specifications can be customized)
Waterproof Rating: IP68-10
Working Temperature: Static -40°C to 100°C, or can withstand heat up to 120°C for a short time. Dynamic -20°C to 80°C, or can withstand heat up to 100°C for a short time.
Colors: Black, Gray, other colors can be customized.
Product Features:
The wave pipe waterproof connector is water-resistant and a product that truly maintains airtightness even when the wave pipe is pulled. It is widely used in mobile automation equipment and airtight applications, and is also fully applied to building wiring conduits. The wave pipe connector integrates clamping jaws into the design of the clamping ring, and uses high-pressure locking corrugated tubing through the tightening nut.
Product Material:
Parts A, C, E, and F are made of UL-approved nylon PA66 for fire resistance with a UL94V-2 rating. Customizable to UL-approved fire-resistant 94V-0 nylon PA66 material. Parts B and D are made of ethylene propylene diene monomer (EPDM) weather-resistant rubber, customizable to rubber with resistance to cold, heat, chemicals, etc.

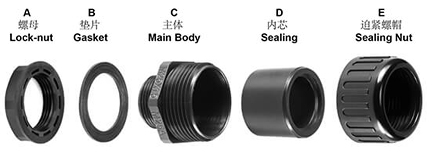

Assembly Diagram:

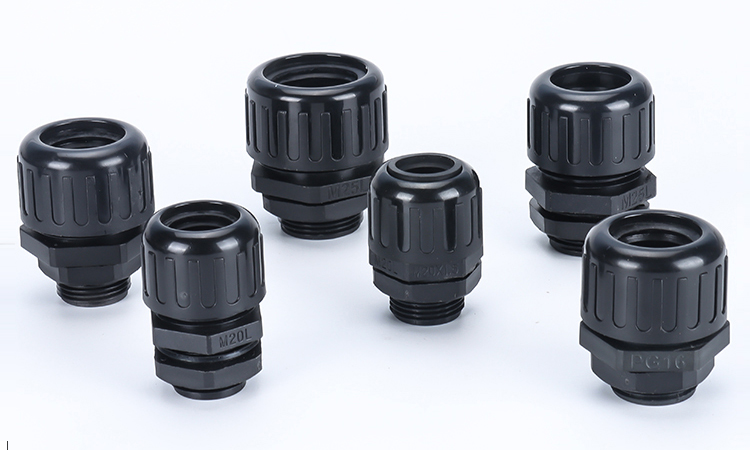

Product Display:
Technical Parameters:
Metric system | ||||||
Screw thread specification | Specification | Matching Pipe | Thread outer diameter | Thread Length | Packaging | |
M12*1.5 | M12-AD10 | AD10.0 | 1/4" | 12 | 9 | 50 |
M16*1.5 | M16-AD13.0-ST | AD13.0 | 5/16" | 16 | 10 | 50 |
M16-AD13.0 | AD13.0 | 5/16" | 16 | 15 | 50 | |
M16-AD15.8-ST | AD15.8 | 3/8" | 16 | 10 | 50 | |
M16-AD15.8 | AD15.8 | 3/8" | 16 | 15 | 50 | |
M16-AD18.5-ST | AD18.5 | 3/8" | 16 | 10 | 50 | |
M16-AD18.5 | AD18.5 | 3/8" | 16 | 15 | 50 | |
M20*1.5 | M20-AD15.8-ST | AD15.8 | 3/8" | 20 | 10 | 50 |
M20-AD15.8 | AD15.8 | 3/8" | 20 | 15 | 50 | |
M20-AD18.5-ST | AD18.5 | 3/8" | 20 | 10 | 50 | |
M20-AD18.5 | AD18.5 | 3/8" | 20 | 15 | 50 | |
M20-AD21.2-ST | AD21.2 | 1/2" | 20 | 10 | 50 | |
M20-AD21.2 | AD21.2 | 1/2" | 20 | 15 | 50 | |
M25*1.5 | M25-AD21.2-ST | AD21.2 | 1/2" | 25 | 12 | 50 |
M25-AD21.2 | AD21.2 | 1/2" | 25 | 15 | 50 | |
M25-AD25-ST | AD25.0 | 3/4" | 25 | 12 | 50 | |
M25-AD25.0 | AD25.0 | 3/4" | 25 | 15 | 50 | |
M25-AD28.5-ST | AD28.5 | 3/4" | 25 | 12 | 50 | |
M25-AD28.5 | AD28.5 | 3/4" | 25 | 15 | 50 | |
M32*1.5 | M32-AD34.5-ST | AD34.5 | 1" | 32 | 12 | 20 |
M32-AD34.5 | AD34.5 | 1" | 32 | 15 | 20 | |
M40*1.5 | M40-AD42.5 | AD42.5 | 1 1/4" | 40 | 15 | 10 |
M50*1.5 | M50-AD42.5 | AD42.5 | 1 1/4" | 50 | 22 | 10 |
M50-AD54.5 | AD54.5 | 2" | 50 | 22 | 10 | |
M63*1.5 | M63-AD54.5 | AD54.5 | 2" | 63 | 25 | 10 |
PG | ||||||
Screw thread specification | Specification | Matching Pipe | Thread outer diameter | Thread Length | Packaging | |
PG7 | PG7-AD10.0 | AD10.0 | 1/4" | 12.5 | 9 | 50 |
PG9 | PG9-AD10.0 | AD10.0 | 1/4" | 15.2 | 9 | 50 |
PG11 | PG11-AD13.0 | AD13.0 | 5/16" | 18.6 | 10 | 50 |
PG13.5 | PG13.5-AD15.8 | AD15.8 | 3/8" | 20.4 | 10 | 50 |
PG13.5-AD18.5 | AD18.5 | 3/8" | 20.4 | 10 | 50 | |
PG16 | PG16-AD15.8 | AD15.8 | 3/8" | 22.5 | 11 | 50 |
PG16-AD18.5 | AD18.5 | 3/8" | 22.5 | 11 | 50 | |
PG16-AD21.2 | AD21.2 | 1/2" | 22.5 | 11 | 50 | |
PG21 | PG21-AD21.2 | AD21.2 | 1/2" | 28.3 | 12 | 50 |
PG21-AD25.0 | AD25.0 | 3/4" | 28.3 | 12 | 50 | |
PG21-AD28.5 | AD28.5 | 3/4" | 28.3 | 12 | 50 | |
PG29 | PG29-AD34.5 | AD34.5 | 1" | 37 | 13 | 20 |
PG36 | PG36-AD42.5 | AD42.5 | 1 1/4" | 47 | 13 | 10 |
PG42 | PG42-AD42.5 | AD42.5 | 1 1/4" | 54 | 16 | 10 |
PG48 | PG48-AD54.5 | AD54.5 | 2" | 59.3 | 16 | 10 |
G | ||||||
Screw thread specification | Specification | Matching Pipe | Thread outer diameter | Thread Length | Packaging | |
G(PF)1/4" | PF1/4-AD10.0 | AD10.0 | 1/4" | 13.1 | 9 | 50 |
G(PF)3/8" | PF3/8-AD13.0 | AD13.0 | 5/16" | 16.6 | 15 | 50 |
G(PF)1/2" | PF1/2-AD15.8 | AD15.8 | 3/8" | 20.9 | 15 | 50 |
PF1/2-AD18.5 | AD18.5 | 3/8" | 20.9 | 15 | 50 | |
PF1/2-AD21.2 | AD21.2 | 1/2" | 20.9 | 15 | 50 | |
PF1/2-AD25 | AD25.0 | 3/4" | 20.9 | 15 | 50 | |
G(PF)3/4" | PF3/4-AD21.2 | AD21.2 | 1/2" | 26.4 | 15 | 50 |
PF3/4-AD25.0 | AD25.0 | 3/4" | 26.4 | 15 | 50 | |
PF3/4-AD28.5 | AD28.5 | 3/4" | 26.4 | 15 | 50 | |
G(PF)1" | PF1-AD34.5 | AD34.5 | 1" | 33.2 | 15 | 20 |
G(PF)1 1/4" | PF1 1/4-AD42.5 | AD42.5 | 1 1/4" | 41.9 | 15 | 10 |
G(PF)1 1/2" | PF1 1/2-AD54.5 | AD54.5 | 2" | 48 | 15 | 10 |
G(PF)2" | PF2-AD54.5 | AD54.5 | 2" | 60 | 15 | 10 |
