Thread specifications: Metric, PG, G(PF) and NPT
Waterproof rating: IP68 - 5Bar
Temperature range: -20°C to +100°C, -40°C to +300°C intermittently
Product features:
1. Can ground shielded cables, one - way installation, shock - resistant.
2. Meets the requirements of today's technology.
3. Easy to install and operate.
4. High corrosion resistance, waterproof.
Product materials:
Contact spring: special copper alloy; Clamping insert: polyamide 6; Seal: neoprene (CR); O - ring: nitrile butadiene rubber (NBR); Flammability: V2 (according to UL 94).

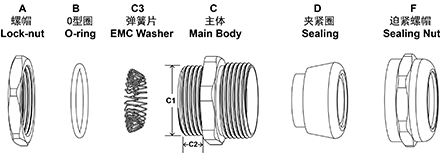

Exploded view:
Technical parameters:
Spring EMC metal cable gland | ||||||
Metric thread | ||||||
Screw thread specifications | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Package |
M12*1.5 | M12-6.5 | 3-6.5 | 12 | 6 | 14/14 | 50 |
M16*1.5 | M16-8 | 4-8 | 16 | 6 | 20/20 | 50 |
M20*1.5 | M20-12 | 6-12 | 20 | 6 | 24/24 | 50 |
M25*1.5 | M25-14 | 10-14 | 25 | 7 | 27/24 | 50 |
M25-16 | 12-16 | 25 | 7 | 27/27 | 50 | |
M25-18 | 13-18 | 25 | 7 | 27/30 | 50 | |
M32*1.5(2) | M32-22 | 15-22 | 32 | 8 | 40/40 | 50 |
M40*1.5(2) | M40-30 | 22-30 | 40 | 8 | 50/50 | 50 |
M50*1.5(2) | M50-38 | 32-38 | 50 | 9 | 55/57 | 50 |
M63*1.5(2) | M63-44 | 37-44 | 63 | 10 | 68/64 | 50 |
M75*1.5(2) | M75-56 | 48-56 | 75 | 15 | 81/81 | 50 |
M85*1.5(2) | M85-70 | 62-70 | 85 | 15 | 95/95 | 50 |
German standard thread | ||||||
Screw thread specifications | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Package |
PG7 | PG7-6.5 | 3-6.5 | 12.5 | 6 | 14/14 | 50 |
PG9 | PG9-8 | 4-8 | 15.2 | 6 | 20/20 | 50 |
PG11 | PG11-10 | 5-10 | 18.6 | 6 | 20/20 | 50 |
PG13.5 | PG13.5-12 | 6-12 | 20.4 | 6.5 | 24/24 | 50 |
PG16 | PG16-14 | 10-14 | 22.5 | 6.5 | 24/24 | 50 |
PG21 | PG21-18 | 13-18 | 28.3 | 7 | 30/30 | 50 |
PG29 | PG29-25 | 18-25 | 37 | 8 | 40/40 | 50 |
PG36 | PG36-33 | 25-32 | 47 | 8 | 50/50 | 50 |
PG42 | PG42-38 | 32-38 | 54 | 9 | 57/57 | 50 |
PG48 | PG48-44 | 37-44 | 59.3 | 10 | 68/68 | 50 |
British standard thread | ||||||
Screw thread specifications | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Package |
G1/4 | G1/4 | 3-6.5 | 13.1 | 8 | 17/17 | 50 |
G3/8 | G3/8 | 5-10 | 16.6 | 9 | 20/20 | 50 |
G1/2 | G1/2 | 10-14 | 20.9 | 9 | 24/24 | 50 |
G3/4 | G3/4 | 13-18 | 26.4 | 12 | 30/30 | 50 |
G1 | G1 | 18-25 | 33.2 | 12 | 40/40 | 50 |
G1-1/4 | G1-1/4 | 25-32 | 41.9 | 15 | 50/50 | 50 |
G1-1/2 | G1-1/2 | 32-38 | 47.8 | 15 | 57/57 | 50 |
G2 | G2 | 37-44 | 59.6 | 15 | 64/64 | 50 |
American standard thread | ||||||
Screw thread specifications | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Package |
NPT1/4 | NPT1/4 | 3-6.5 | 13.6 | 13 | 17/17 | 50 |
NPT3/8 | NPT3/8 | 5-10 | 17 | 13 | 20/20 | 50 |
NPT1/2 | NPT1/2 | 10-14 | 21.2 | 13 | 24/24 | 50 |
NPT3/4 | NPT3/4 | 13-18 | 26.5 | 13 | 30/30 | 50 |
NPT1 | NPT1 | 18-25 | 33.2 | 15 | 40/40 | 50 |
NPT1-1/4 | NPT1-1/4 | 25-33 | 41.9 | 17 | 54/54 | 50 |
NPT1-1/2 | NPT1-1/2 | 32-38 | 48 | 15 | 50/50 | 50 |
NPT2 | NPT2 | 37-44 | 60 | 20 | 64/64 | 50 |
