Thread specifications: Metric thread, PG thread, G(PF) thread. (Threads can be customized)
Waterproof rating: IP68.
Operating temperature: -50℃ to +180℃
Product features:
1. Good durability. The stainless - steel cable gland has high stability and can provide good strength and corrosion resistance in harsh environments.
2. No need to disassemble. The cable can be directly inserted, and then easily tightened, saving time. Its precise clamping and sealing technology fixes the steel wire rope. This product has strong tensile strength, good airtightness, and a continuous submergence ability of 50 meters.
3. The stainless - steel material has the characteristics of strong tensile strength, waterproof, dust - proof, salt - resistant, weak - acid - resistant, alcohol - resistant, oil - resistant, grease - resistant, and resistant to general solvents.
Product materials:
Parts A, C, and F are made of 304/316 stainless steel. Part E is made of UL - approved nylon PA66 (fire - rating UL94V - 2). Parts B and D are made of nitrile rubber or ethylene - propylene - diene monomer (EPDM) rubber.

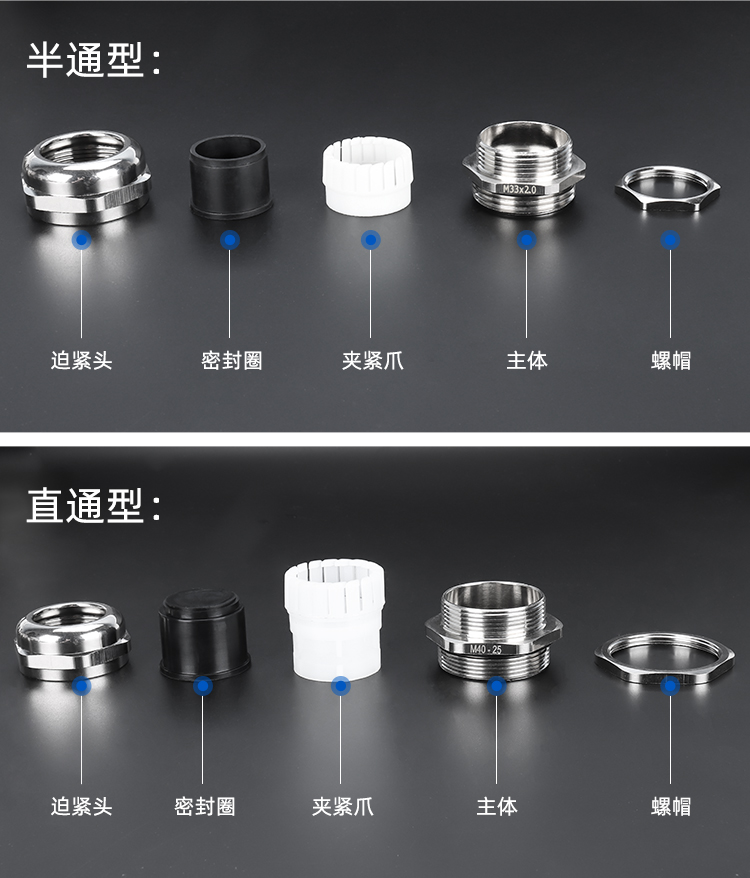

Exploded view:
Technical parameters:
Stainless steel cable joint | ||||||
Metric thread | ||||||
Thread specification | Specifications | Cable range | Thread outer diameter | Thread length | Wrench diameter | Package |
M10*1.0 | M10-6.5 | 3-6.5 | 10 | 6.5 | 14/14 | 50 |
M12*1.5 | M12-6.5 | 3-6.5 | 12 | 6.5 | 14/14 | 50 |
M14*1.5 | M14-8 | 4-8 | 14 | 7 | 17/17 | 50 |
M16*1.5 | M16-8 | 4-8 | 16 | 8 | 18/18 | 50 |
M18*1.5 | M18-10 | 5-10 | 18 | 8 | 20/20 | 50 |
M20*1.5 | M20-12 | 6-12 | 20 | 8 | 22/22 | 50 |
M22*1.5 | M22-14 | 10-14 | 22 | 8 | 24/24 | 50 |
M24*1.5 | M24-14 | 10-14 | 24 | 9 | 27/24 | 50 |
M25*1.5 | M25-14 | 10-14 | 25 | 9 | 27/24 | 50 |
M25-16 | 12-16 | 25 | 9 | 27/27 | 50 | |
M25-18 | 13-18 | 25 | 9 | 27/30 | 50 | |
M27*1.5(2) | M27-18 | 13-18 | 27 | 9 | 30/30 | 50 |
M28*1.5(2) | M28-18 | 13-18 | 28 | 9 | 30/30 | 50 |
M30*1.5(2) | M30-18 | 13-18 | 30 | 9 | 32/30 | 50 |
M32*1.5(2) | M32-22 | 15-22 | 32 | 10 | 35/35 | 50 |
M33*1.5(2) | M33-22 | 15-22 | 33 | 10 | 35/35 | 50 |
M36*1.5(2) | M36-25 | 18-25 | 36 | 10 | 40/40 | 50 |
M37*1.5(2) | M37-25 | 18-25 | 37 | 10 | 40/40 | 50 |
M40*1.5(2) | M40-30 | 22-30 | 40 | 11 | 45/45 | 50 |
M42*1.5(2) | M42-30 | 22-30 | 42 | 11 | 45/45 | 50 |
M47*1.5(2) | M47-33 | 25-33 | 47 | 11 | 50/50 | 50 |
M48*1.5(2) | M48-33 | 25-33 | 48 | 11 | 50/52 | 50 |
M50*1.5(2) | M50-38 | 32-38 | 50 | 13 | 55/57 | 50 |
M54*1.5(2) | M54-38 | 32-38 | 54 | 13 | 55/57 | 50 |
M60*1.5(2) | M60-44 | 37-44 | 60 | 14 | 64/64 | 50 |
M63*1.5(2) | M63-44 | 37-44 | 63 | 14 | 68/64 | 50 |
M64*1.5(2) | M64-44 | 37-44 | 64 | 14 | 68/64 | 50 |
M72*1.5(2) | M72-52 | 42-52 | 72 | 16 | 78/78 | 50 |
M75*1.5(2) | M75-52 | 42-52 | 75 | 16 | 78/78 | 50 |
M80*1.5(2) | M80-62 | 55-62 | 80 | 18 | 88/88 | 50 |
M88*1.5(2) | M88-70 | 65-70 | 88 | 18 | 94/94 | 50 |
M100*1.5(2) | M100-84 | 78-84 | 100 | 20 | 110/110 | 50 |
German thread | ||||||
Thread specification | Specifications | Cable range | Thread outer diameter | Thread length | Wrench diameter | Package |
PG7 | PG7-6.5 | 3-6.5 | 12.5 | 6.5 | 14/14 | 50 |
PG9 | PG9-8 | 4-8 | 15.2 | 7 | 17/17 | 50 |
PG11 | PG11-10 | 5-10 | 18.6 | 8 | 20/20 | 50 |
PG13.5 | PG13.5-12 | 6-12 | 20.4 | 8 | 22/22 | 50 |
PG16 | PG16-14 | 10-14 | 22.5 | 9 | 24/24 | 50 |
PG19 | PG19-14 | 10-14 | 25 | 9 | 27/24 | 50 |
PG21 | PG21-18 | 13-18 | 28.3 | 9 | 30/30 | 50 |
PG25 | PG25-22 | 15-22 | 32 | 10 | 35/35 | 50 |
PG29 | PG29-25 | 18-25 | 37 | 11 | 40/40 | 50 |
PG36 | PG36-33 | 25-33 | 47 | 11 | 50/50 | 50 |
PG42 | PG42-38 | 32-38 | 54 | 13 | 57/57 | 50 |
PG48 | PG48-44 | 37-44 | 59.3 | 14 | 64/64 | 50 |
PG63 | PG63-52 | 42-52 | 72 | 16 | 78/78 | 50 |
British standard thread | ||||||
Thread specification | Specifications | Cable range | Thread outer diameter | Thread length | Wrench diameter | Package |
G1/4 | G1/4 | 3-6.5 | 13.1 | 6 | 14/14 | 50 |
G3/8 | G3/8 | 4-8 | 16.6 | 8 | 18/18 | 50 |
G1/2 | G1/2 | 6-12 | 20.9 | 8 | 22/22 | 50 |
G3/4 | G3/4 | 13-18 | 26.4 | 9 | 30/30 | 50 |
G1 | G1 | 18-25 | 33.2 | 10 | 40/40 | 50 |
G1-1/4 | G1-1/4 | 25-33 | 41.9 | 13 | 50/50 | 50 |
G1-1/2 | G1-1/2 | 32-38 | 47.8 | 14 | 57/57 | 50 |
G2 | G2 | 37-44 | 59.6 | 14 | 64/64 | 50 |
G2-1/2 | G2-1/2 | 42-52 | 75.1 | 15 | 77/77 | 50 |
G3 | G3 | 65-70 | 87.8 | 15 | 94/94 | 50 |
American standard thread | ||||||
Thread specification | Specifications | Cable range | Thread outer diameter | Thread length | Wrench diameter | Package |
NPT1/4 | NPT1/4 | 3-6.5 | 13.6 | 6 | 14/14 | 50 |
NPT3/8 | NPT3/8 | 4-8 | 17 | 8 | 18/18 | 50 |
NPT1/2 | NPT1/2 | 6-12 | 21.2 | 8 | 22/22 | 50 |
NPT3/4 | NPT3/4 | 13-18 | 26.5 | 9 | 30/30 | 50 |
NPT1 | NPT1 | 18-25 | 33.2 | 11 | 40/40 | 50 |
NPT1-1/4 | NPT1-1/4 | 25-33 | 41.9 | 13 | 50/50 | 50 |
NPT1-1/2 | NPT1-1/2 | 32-38 | 48 | 14 | 57/57 | 50 |
NPT2 | NPT2 | 37-44 | 60 | 14 | 64/64 | 50 |
NPT2-1/2 | NPT2-1/2 | 42-52 | 72.6 | 15 | 77/77 | 50 |
NPT3 | NPT3 | 65-70 | 88.6 | 15 | 94/94 | 50 |
