Product Material: HDPE
Temperature Range: -50°C to 80°C (-58°F to 176°F).
Color: The standard colors are natural color and absence color. Other colors can be provided upon request.
Product Features:
1. Easy to install. No other tools are required.
2. Spiral Cable: Wrap the cable management sleeve around your wires and it can be completed within one minute.
2. Spiral Wrapping (Heavy-Duty) provides protection for cables, wires, hoses, & pipes, protecting them from wear and preventing electric leakage.
3. Easy to cut and wrap.
4. Prevents wear, friction, and cutting, and also helps prevent tangling.
5. Made of frost-resistant and heat-resistant HDPE (Heavy-Duty Polyethylene).
6. This polyethylene is extruded to form smooth, rounded edges.

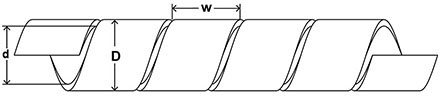

Decomposition diagram:
Technical parameters:
Spiral winding tape | |||||
Cat. No | d(mm) | D(mm) | W(mm) | Wrapping Range | Packing |
PJ-SWB-03 | 1.5 | 3.0 | 4.0 | 1.5-10 | 10mm |
PJ-SWB-06 | 4.0 | 6.0 | 7.0 | 4-50 | 10mm |
PJ-SWB-08 | 6.0 | 8.0 | 10.8 | 6-60 | 10mm |
PJ-SWB-10 | 8.0 | 10.0 | 11.4 | 7.5-60 | 10mm |
PJ-SWB-12 | 9.0 | 12.0 | 14.0 | 9-65 | 10mm |
PJ-SWB-15 | 12.0 | 15.0 | 15.0 | 12-75 | 10mm |
PJ-SWB-19 | 15.0 | 19.0 | 18.0 | 15-100 | 10mm |
PJ-SWB-24 | 20.0 | 24.0 | 19.5 | 20-130 | 10mm |
PJ-SWB-30 | 26.0 | 30.0 | 43.0 | 26-150 | 10mm |
