Screw specifications:
Metric teeth, PG teeth, G (PF) teeth. (Screw teeth can be customized)
Waterproof grade:
IP68-10
Working temperature:
Static -40 ℃ to 100 ℃, or instantly heat-resistant to 120 ℃. Dynamic -20 ℃ to 80 ℃, or can withstand ripening up to 100 ℃ during purchase
Product Features:
This product has a 90 ° angle and provides an exit hole design with more exit directions, ensuring the use of bent cables and increasing aesthetics. The specially designed clamping ring and clamping claw, with a tight nut and loose grip, will make a "click" sound when tightened and prevent it from tipping over. It can firmly fix the cable, expand the clamping range of the cable, have strong tensile strength, waterproof, dustproof, salt resistant, weak acid resistant, alcohol, oil, grease and general solvents.
Product Material:
A. Parts C, E, and F are made of UL approved nylon PA66 with a fire rating of UL94V-2, and UL approved fire rated 94V-0 nylon PA66 material can be customized. B. Part D is made of EPDM weather resistant rubber, which can be customized with cold resistant, high temperature resistant, chemical resistant and other rubber materials.

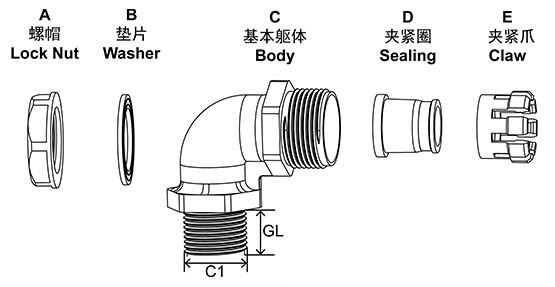

Decomposition diagram:
Technical parameters:
90 degree nylon cable waterproof joint (Type A split) | ||||||
Metric | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
M16*1.5 | MGA16-E-06 | 4-7 | 16 | 15 | 22/22 | 50 |
MGA16-E-08 | 5-8 | 16 | 15 | 22/22 | 50 | |
MGA16-E-10 | 6-10 | 16 | 15 | 22/22 | 50 | |
M20*1.5 | MGA20-E-11 | 6-11 | 20 | 15 | 27/27 | 50 |
MGA20-E-14 | 8-14 | 20 | 15 | 27/27 | 50 | |
M25*1.5 | MGA25-E-16 | 12-16 | 25 | 15 | 33/39 | 50 |
MGA25-E-18 | 14-18 | 25 | 15 | 33/39 | 50 | |
M32*1.5 | MGA32-E-22 | 16-22 | 32 | 15 | 41/45 | 20 |
MGA32-E-25 | 18-25 | 32 | 15 | 41/45 | 20 | |
M40*1.5 | MGA40-E-26 | 20-26 | 40 | 20 | 50/55 | 12 |
MGA40-E-31 | 23-31 | 40 | 20 | 50/55 | 12 | |
German made teeth | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
PG16 | PGA16-E-10 | 6-10 | 22.5 | 12 | 30/27 | 50 |
PGA16-E-14 | 8-14 | 22.5 | 12 | 30/27 | 50 | |
BSW | ||||||
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
G(PF)1/2 | G(PF)1/2-E-10 | 6-10 | 20.955 | 12 | 27/27 | 50 |
G(PF)1/2-E-14 | 8-14 | 20.955 | 12 | 27/27 | 50 | |
G(PF)3/4 | G(PF)3/4-E-16 | 12-16 | 26.441 | 15 | 33/39 | 50 |
G(PF)3/4-E-18 | 14-18 | 26.441 | 15 | 33/39 | 50 | |
G(PF)1 | G(PF)1-E-22 | 16-22 | 33.249 | 15 | 42/45 | 50 |
G(PF)1-E-25 | 18-25 | 33.249 | 15 | 42/45 | 50 | |
G(PF)1 1/4 | G(PF)1 1/4-E-28 | 20-28 | 41.91 | 20 | 53/55 | 20 |
G(PF)1 1/4-E-32 | 23-32 | 41.91 | 20 | 53/55 | 20 | |
