Thread specifications: Metric, PG, G(PG) and NPT.
Waterproof rating: IP68 - 10.
Operating temperature: Static -40°C to 100°C, or can withstand heat up to 120°C instantaneously. Dynamic -20°C to 80°C, or can withstand heat up to 100°C instantaneously.
Product features:
This product is designed specifically for the vent - hole type. This function allows multiple cables to be connected to one outlet hole simultaneously, with simple operation. It not only greatly shortens the construction time, reduces costs, but also reduces the space occupied by the outlet. It has high corrosion resistance to brine, weak acids, alcohols, oils, fats and general solubility.
Product materials:
Brass with nickel - plated A, C, F parts; Part E is UL - approved nylon PA66 (flammability UL94V - 2); Parts B and D are NBR or EPDM rubber, and the rubber material can be customized.

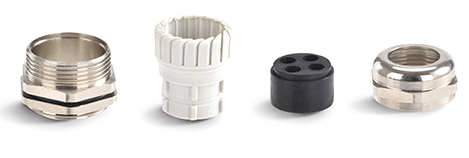

Exploded view:
Technical parameters:
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diamete (mm) |
| M12-H2 | M12*1.5 | 3-1.2 | 12 | 7 | 14 |
M16-H2 | M16*1.5 | 4-1.6 | 16 | 8 | 18 | |
M18-H2 | M18*1.5 | 3.5-2 | 18 | 8 | 20 | |
M20A-H2 | M20*1.5 | 5.3-1.5 | 20 | 8 | 22 | |
M20B-H2 | M20*1.5 | 3.5-2 | 20 | 8 | 22 | |
M22-H2 | M22*1.5 | 6-2.5 | 22 | 8 | 24 | |
M25-H2 | M25*1.5 | 8.7-4 | 25 | 9 | 30 | |
M32-H2 | M32*1.5 | 10-5 | 32 | 9 | 35 | |
PG7-H2 | PG7 | 3-1.2 | 12.5 | 8 | 14 | |
PG9-H2 | PG9 | 4-1.6 | 15.2 | 8 | 17 | |
PG11-H2 | PG11 | 3.5-2 | 18.6 | 8 | 20 | |
PG13.5-H2 | PG13.5 | 5.3-1.5 | 20.4 | 8 | 22 | |
PG16-H2 | PG16 | 6-2.5 | 22.5 | 8 | 24 | |
PG21-H2 | PG21 | 8.7-4.5 | 28.3 | 9 | 30 | |
PG29-H2 | PG29 | 10-5 | 37 | 10 | 40 | |
G1/4-H2 | G1/4 | 3-1.2 | 13.1 | 7 | 14 | |
G3/8-H2 | G3/8 | 4-1.6 | 16.6 | 8 | 18 | |
G1/2A-H2 | G1/2 | 3.5-2 | 20.9 | 8 | 22 | |
G1/2B-H2 | G1/2 | 5.3-1.5 | 20.9 | 8 | 22 | |
G3/4-H2 | G3/4 | 8.7-4.5 | 26.4 | 9 | 30 | |
G1-H2 | G1 | 10-5 | 33.2 | 10 | 35 | |
N3/8-H2 | NPT3/8 | 4-1.6 | 17 | 8 | 18 | |
N1/2A-H2 | NPT1/2 | 3.5-2 | 21.2 | 8 | 22 | |
N1/2B-H2 | NPT1/2 | 5.3-1.5 | 21.2 | 8 | 22 | |
N3/4-H2 | NPT3/4 | 8.7-4.5 | 26.5 | 9 | 30 | |
N1-H2 | NPT1 | 10-5 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diameter (mm) |
| M12-H3 | M12*1.5 | 2.6-1.2 | 12 | 7 | 14 |
M16-H3 | M16*1.5 | 2.6-1.2 | 16 | 8 | 18 | |
M18-H3 | M18*1.5 | 4-1.6 | 18 | 8 | 20 | |
M20A-H3 | M20*1.5 | 5-2 | 20 | 8 | 22 | |
M20B-H3 | M20*1.5 | 3.5-1.5 | 20 | 8 | 22 | |
M22-H3 | M22*1.5 | 3.5-1.5 | 22 | 8 | 24 | |
M25-H3 | M25*1.5 | 8-4 | 25 | 9 | 30 | |
M32-H3 | M32*1.5 | 10-5 | 32 | 9 | 35 | |
PG7-H3 | PG7 | 2.6-1.2 | 12.5 | 8 | 14 | |
PG9-H3 | PG9 | 2.6-1.2 | 15.2 | 8 | 17 | |
PG11-H3 | PG11 | 4-1.6 | 18.6 | 8 | 20 | |
PG13.5-H3 | PG13.5 | 5-2 | 20.4 | 8 | 22 | |
PG16-H3 | PG16 | 3.5-1.5 | 22.5 | 8 | 24 | |
PG21-H3 | PG21 | 5-2 | 28.3 | 9 | 30 | |
PG29-H3 | PG29 | 10-5 | 37 | 10 | 40 | |
G1/4-H3 | G1/4 | 2.6-1.2 | 13.1 | 7 | 14 | |
G3/8-H3 | G3/8 | 4-1.6 | 16.6 | 8 | 18 | |
G1/2A-H3 | G1/2 | 5-2 | 20.9 | 8 | 22 | |
G1/2B-H3 | G1/2 | 3.5-1.5 | 20.9 | 8 | 22 | |
G3/4-H3 | G3/4 | 8-4 | 26.4 | 9 | 30 | |
G1-H3 | G1 | 10-5 | 33.2 | 10 | 35 | |
N3/8-H3 | NPT3/8 | 4-1.6 | 17 | 8 | 18 | |
N1/2A-H3 | NPT1/2 | 3.5-1.5 | 21.2 | 8 | 22 | |
N1/2B-H3 | NPT1/2 | 5-2 | 21.2 | 8 | 22 | |
N3/4-H3 | NPT3/4 | 8-4 | 26.5 | 9 | 30 | |
N1-H3 | NPT1 | 10-5 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diamete (mm) |
| M12-H4 | M12*1.5 | 2.3-1 | 12 | 7 | 14 |
M16-H4 | M16*1.5 | 2.3-1 | 16 | 8 | 18 | |
M18-H4 | M18*1.5 | 3-1.2 | 18 | 8 | 20 | |
M20A-H4 | M20*1.5 | 4.2-1.7 | 20 | 8 | 22 | |
M20B-H4 | M20*1.5 | 3.5-1.5 | 20 | 8 | 22 | |
M22-H4 | M22*1.5 | 4.5-2 | 22 | 8 | 24 | |
M25-H4 | M25*1.5 | 5-2 | 25 | 9 | 30 | |
M32-H4 | M32*1.5 | 9-4.5 | 32 | 9 | 35 | |
PG7-H4 | PG7 | 2.3-1 | 12.5 | 8 | 14 | |
PG9-H4 | PG9 | 2.3-1 | 15.2 | 8 | 17 | |
PG11-H4 | PG11 | 3-1.2 | 18.6 | 8 | 20 | |
PG13.5-H4 | PG13.5 | 4.2-1.7 | 20.4 | 8 | 22 | |
PG16-H4 | PG16 | 4.5-2 | 22.5 | 8 | 24 | |
PG21-H4 | PG21 | 7-3.5 | 28.3 | 9 | 30 | |
PG29-H4 | PG29 | 9-4.5 | 37 | 10 | 40 | |
G1/4-H4 | G1/4 | 2.3-1 | 13.1 | 7 | 14 | |
G3/8-H4 | G3/8 | 3-1.2 | 16.6 | 8 | 18 | |
G1/2A-H4 | G1/2 | 3.5-1.5 | 20.9 | 8 | 22 | |
G1/2B-H4 | G1/2 | 4.5-2 | 20.9 | 8 | 22 | |
G3/4-H4 | G3/4 | 7-3.5 | 26.4 | 9 | 30 | |
G1-H4 | G1 | 9-4.5 | 33.2 | 10 | 35 | |
N3/8-H4 | NPT3/8 | 2.3-1 | 17 | 8 | 18 | |
N1/2A-H4 | NPT1/2 | 3.5-1.5 | 21.2 | 8 | 22 | |
N1/2B-H4 | NPT1/2 | 4.5-2 | 21.2 | 8 | 22 | |
N3/4-H4 | NPT3/4 | 7-3.5 | 26.5 | 9 | 30 | |
N1-H4 | NPT1 | 9-4.5 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diameter (mm) |
| M16-H5 | M16*1.5 | 2.5-1 | 16 | 8 | 18 |
M20A-H5 | M20*1.5 | 3-1.2 | 20 | 8 | 22 | |
M20B-H5 | M20*1.5 | 4.2-1.7 | 20 | 8 | 22 | |
M25A-H5 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25B-H5 | M25*1.5 | 6-3 | 25 | 9 | 30 | |
M32-H5 | M32*1.5 | 8-4 | 32 | 9 | 35 | |
PG9-H5 | PG9 | 2.5-1 | 15.2 | 8 | 17 | |
PG13.5A-H5 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG13.5B-H5 | PG13.5 | 4.2-1.7 | 20.4 | 8 | 22 | |
PG21A-H5 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG21B-H5 | PG21 | 6-3 | 28.3 | 9 | 30 | |
PG29-H5 | PG29 | 8-4 | 37 | 10 | 40 | |
G3/8-H5 | G3/8 | 2.5-1 | 16.6 | 8 | 18 | |
G1/2A-H5 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G1/2B-H5 | G1/2 | 4.2-17 | 20.9 | 8 | 22 | |
G3/4-H5 | G3/4 | 6-3 | 26.4 | 9 | 30 | |
G1-H5 | G1 | 8-4 | 33.2 | 10 | 35 | |
N3/8-H5 | NPT3/8 | 2.5-1 | 17 | 8 | 18 | |
N1/2A-H5 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N1/2B-H5 | NPT1/2 | 4.2-1.7 | 21.2 | 8 | 22 | |
N3/4-H5 | NPT3/4 | 6-3 | 26.5 | 9 | 30 | |
N1-H5 | NPT1 | 8-4 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diamete (mm) |
| M16-H6 | M16*1.5 | 2-1 | 16 | 8 | 18 |
M20-H6 | M20*1.5 | 3-1.2 | 20 | 8 | 22 | |
M25A-H6 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25B-H6 | M25*1.5 | 5.3-2.4 | 25 | 9 | 30 | |
M32-H6 | M32*1.5 | 7-3.5 | 32 | 9 | 35 | |
PG9-H6 | PG9 | 2-1 | 15.2 | 8 | 17 | |
PG13.5-H6 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG21A-H6 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG21B-H6 | PG21 | 5.3-2.4 | 28.3 | 9 | 30 | |
PG29-H6 | PG29 | 7-3.5 | 37 | 10 | 40 | |
G3/8-H6 | G3/8 | 2-1 | 16.6 | 8 | 18 | |
G1/2-H6 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G3/4A-H6 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
G3/4B-H6 | G3/4 | 5.3-2.4 | 26.4 | 9 | 30 | |
G1-H6 | G1 | 7-3.5 | 33.2 | 10 | 35 | |
N3/8-H6 | NPT3/8 | 2-1 | 17 | 8 | 18 | |
N1/2A-H6 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N3/4-H6 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 22 | |
N3/4-H6 | NPT3/4 | 5.3-2.4 | 26.5 | 9 | 30 | |
N1-H6 | NPT1 | 7-3.5 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diameter (mm) |
| M20-H7 | M20*1.5 | 3-1.2 | 20 | 8 | 22 |
M25-H7 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25-H7 | M25*1.5 | 6-3 | 25 | 9 | 35 | |
M32-H6 | M32*1.5 | 7-3.5 | 32 | 9 | 35 | |
PG13.5-H7 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG21-H7 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG29-H7 | PG29 | 6-3 | 37 | 10 | 40 | |
G1/2-H7 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G3/4-H7 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
G1-H7 | G1 | 6-3 | 33.2 | 10 | 35 | |
N1/2-H7 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N3/4-H7 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 30 | |
N1-H7 | NPT1 | 6-3 | 33.2 | 10 | 35 | |
Model | Specifications | Screw threa specifications | Cable range (mm) | Thread oute diameter (mm) | Thread length (mm) | Wrench diamete (mm) |
| M20-H8 | M20*1.5 | 2.8-1 | 20 | 8 | 22 |
M25-H8 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
G1/2-H8 | G1/2 | 2.8-1 | 20.9 | 8 | 22 | |
G3/4-H8 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
PG13.5-H8 | PG13.5 | 2.8-1 | 20.4 | 8 | 22 | |
PG21-H8 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
N1/2-H8 | NPT1/2 | 2.8-1 | 21.2 | 8 | 22 | |
N3/4-H8 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 30 |
