Product Overview:
The plug - in straight - through air pipe connector is mainly used for the quick connection of gas pipelines, and is also called a quick - insert air pipe connector. It is made of stainless steel for quick connection in pipelines. Generally, one end is an external thread connector, and the other end is crimp - connected to a plastic hose. However, it can also be a three - end quick - insert connector or a quick - insert elbow connector. It is widely used in electric power, electromechanical engineering, chemical machinery, pneumatic air source pipelines, and hydraulic pipelines.
Detailed Description:
Installation Method: One - hand quick - access type, with an accepted diameter of 4 - 16 (mm).
Material: Stainless steel 304 and 316.
Temperature Resistance: - 20 - 100℃
Pressure Resistance: 0.8 - 10MPa

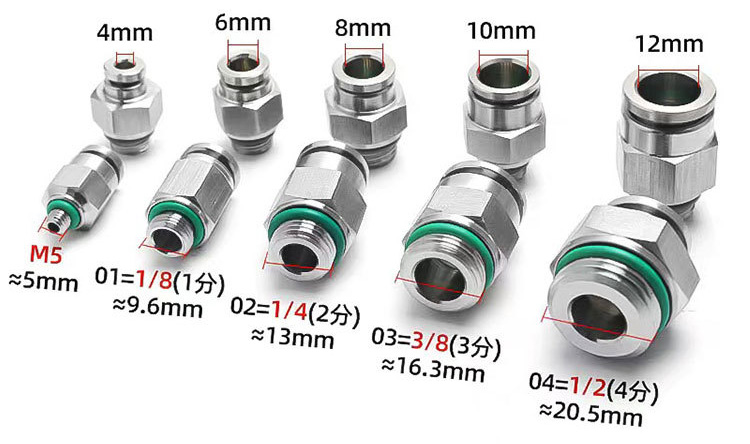

Thread Description:
01 = 1 point = G1/8 pipe thread (the outer diameter of the thread is approximately 9.5MM)
02 = 2 points = G1/4 pipe thread (the outer diameter of the thread is approximately 12.7MM)
03 = 3 points = G3/8 pipe thread (the outer diameter of the thread is approximately 16.7MM)
04 = 4 points = G1/2 pipe thread (the outer diameter of the thread is approximately 21MM)
06 = 6 points = G3/4 pipe thread (the outer diameter of the thread is approximately 26MM)
1 inch = 8 points = 1 - inch pipe thread (the outer diameter of the thread is approximately 32MM)
The take over 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm represents the outer diameter of the air pipe.
Name code abbreviation correspondence table:
Name | Code name |
External thread quick-connect straight through terminal | PC |
Internal thread quick - connect straight through terminal | PCF |
Quick-insert straight-through middle / reducing joint | PU |
Threaded quick - connect elbow joint | PL |
Quick coupling elbow | PV |
Quick through-panel connector | PM |
Threaded quick-connect tee fitting | PB |
Quick coupling tee | PE |
Overall dimensions:
Technical parameters:
Thread specification | Abbreviation | Abbreviation = How many minutes | Other names | Thread diameter |
1/8 | 01 | 1分 | DR6 | 9.5±0.2 |
1/4 | 02 | 2分 | DK8 | 12.5±0.3 |
318 | 03 | 3分 | D10 | 16.2±0.3 |
1/2 | 04 | 4纷 | DN15 | 20.3±0.3 |
314 | 06 | 6分 | DR20 | 25.7±0.5 |
