Product material: PA polyamide
Protection level: Low-smoke and zero-halogen.
Color: Standard black and light gray, other colors can be customized.
Operating temperature: -40℃ - +110℃
Product features:
1. Two models with cover and without cover are available for selection.
2. It is used for plastic corrugated pipes, to fix and stabilize pipes or cables.
Attributes:
The PJ bracket provides a firm support for the conduit, and is used to fix flexible conduits or cables, etc.
Technical parameters:
Nylon catheter stent | ||||||||
Cat. No. | Adaptive Pipe | A | B | T | H | M | Std.pkg | |
Inch | Size | |||||||
VH-10.0 | 1/4'' | AD10.0 | 6.5 | 25 | 12.5 | 26 | 4 | 100 |
VH-13.0 | 5/16'' | AD13.0 | 6.5 | 30 | 12.5 | 26 | 4 | 100 |
VH-15.8 | 3/8'' | AD15.8 | 6.5 | 30 | 12.5 | 26 | 4 | 100 |
VH-21.2 | 1/2'' | AD21.2 | 6.5 | 35 | 15 | 34 | 6 | 100 |
VH-25.0 | AD25.0 | 11.5 | 42 | 16 | 38 | 6 | 50 | |
VH-28.5 | 3/4'' | AD28.5 | 11.5 | 42 | 16 | 42 | 6 | 50 |
VH-34.5 | 1'' | AD34.5 | 11.5 | 51 | 16 | 49 | 6 | 50 |
VH-42.5 | 1 1/4'' | AD42.5 | 11.5 | 58 | 18 | 57 | 6 | 50 |
VH-54.5 | 2'' | AD54.5 | 12 | 73 | 20 | 70 | 7 | 50 |

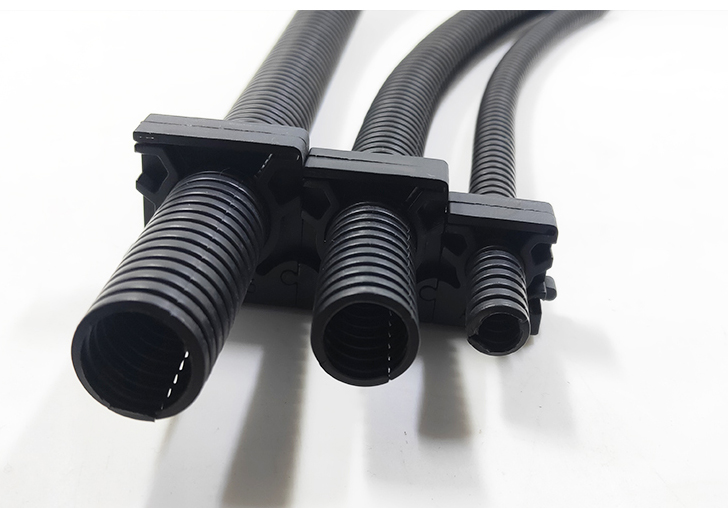

Installation effect:
