Product Overview:
It acts on the waterproof and dust - proof housing, mainly used to prevent objects inside the box, such as circuits, instruments, and apparatuses, from being affected by water ingress and thus affecting their performance.
Waterproof Grade:
The general waterproof grade ranges from IP63 to IP68. Specifically classified as follows:
IP63: Water or rainwater splashing onto the shell from a 60 - degree corner has no impact.
IP64: Liquids splashed onto the shell from any direction cause no damage.
IP65: It can be washed with water without any damage.
IP66: It can be used in the environment of the ship's cabin.
IP67: It can withstand short - term immersion in water (1m).
IP68: It can be immersed in water for a long time under a certain pressure, such as for deep - water cable connections.
Main Applications:
Due to regional differences and different scopes of application, waterproof boxes have different names. Those used in industry mainly include waterproof junction boxes, waterproof instrument boxes, waterproof photovoltaic junction boxes, etc. Waterproof boxes are mainly suitable for indoor and outdoor electrical, communication, and fire - fighting facilities, steel smelting, petrochemical, electronics, electric power, railways, construction sites, mines, mining fields, airports, hotels, ships, large factories, coastal factories, unloading dock equipment, wastewater treatment facilities, environmental pollution facilities, etc.

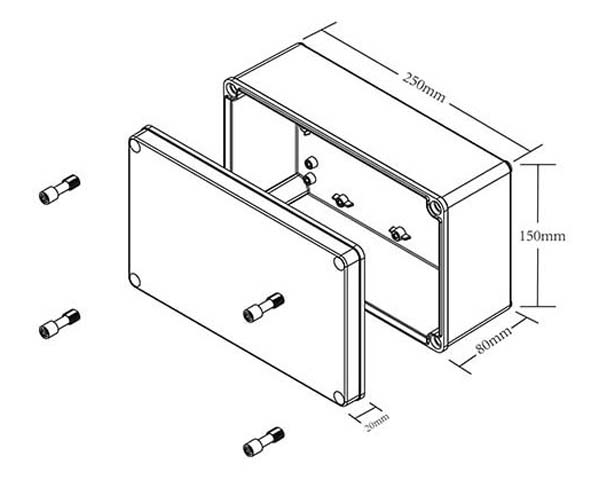

Overall dimensions:
Technical parameters:
Part No. | Dimension | Cover | Material | IP Rate |
PB-AG-081307 | 80*130*70MM | Solid/Transparent | ABS/PC | IP67 |
PB-AT-152510 | 150*250*100MM | Solid/Transparent | ABS/PC | IP67 |
