Material: The inner sleeve is made of copper plated with silver, and the outer part is made of UL-certified nylon 66 ethylene.
Usage: Strip the outer skin of the wire, insert it into the sleeve, and then press it tightly with a crimping pliers.
Purpose: An excellent connector for electrical products.

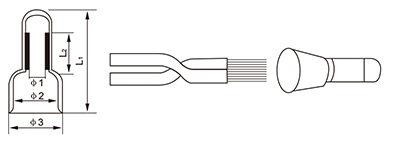

Product breakdown:
Technical parameters:
ITEM.NO | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | |
Standard Dimensions | φ1 | 3 | 3.15 | 4.2 | 5.2 | 6.5 | 8.3 |
φ2 | 6.5 | 7.6 | 5.58 | 10 | 11.5 | 14.3 | |
φ3 | 7.5 | 8.6 | 9.2 | 10.7 | 12.5 | 15.3 | |
L1 | 15.8 | 17.7 | 20.6 | 22 | 22.5 | 6 | |
L2 | 3.2 | 3.2 | 4.5 | 4.5 | 5.5 | 29.5 | |
