Screw specifications:
Metric teeth, PG teeth, G (PF) teeth. (Screw teeth can be customized)
Waterproof grade:
IP67-IP68
Working temperature:
Static -40 ℃ to 100 ℃, or instantly heat-resistant to 120 ℃. Dynamically -20 ℃ to 80 ℃, or instantly heat-resistant to 100 ℃
Product Features:
This connector has ventilation function. Allow air to pass through, prevent moisture and dust from passing through, maintain pressure balance on the product casing, and avoid outdoor lighting or condensation on the casing. Easy to use and install. Customize waterproof grade based on water depth and breathability. Using this breathing cable sealing sleeve can help extend its service life.
Product Material:
A. Parts C and F are made of UL approved nylon PA66 with a fire rating of UL94V-2, and UL approved fire rated 94V-0 nylon PA66 material can be customized. B. Part D is made of EPDM weather resistant rubber, which can be customized with cold resistant, high temperature resistant, chemical resistant and other rubber materials.
Color:
Black, gray, other colors can be customized.

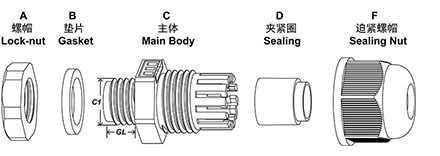

Decomposition diagram:
How to choose the correct type of screw thread?
1. Firstly, determine the aperture of the installation panel and determine whether it belongs to the tapping hole.
2. Refer to the technical parameter table to find the matching thread model (such as M, PG, NPT, G thread).
3. If the installation panel does not have tapping holes, then only the hole diameter needs to be determined.
4. The extended thread is suitable for thick installation panels.
Frequently asked questions
1. Q: Is there UL certification?
Answer: This product is made of raw material UL (nylon PA66 with a fire rating of UL94V-2).
2. Question: What is the service life?
Answer: Over 10 years in a regular environment.
3. Q: How long is the delivery time?
Answer: Regular models are generally in stock and can be shipped at any time. Large quantities can be shipped within 3-7 working days.
4. Q: Can we customize connectors and packaging?
Answer: Sure.
