Protection level: IP68
Thread specifications: British thread G (PF/BPSP/PS), American thread NPT.
Color: Black, gray, and special colors, can be designed according to requirements.
Materials: Parts A, C, and E are made of UL approved nylon PA66, while parts B and D are made of nitrile rubber (NBR).
Working temperature: static 40-100, instantaneous thermal resistance up to 120; Dynamic range of 20-80, with an instantaneous thermal resistance of up to 100.
Characteristic:
The special design of clamping molds and rubber parts, wide range of cable clamping, super strong tensile resistance, waterproof, dustproof, strong resistance to salt, acid, alkali, alcohol, grease, and universal solvents.
Note: For special sizes and models, please contact us.

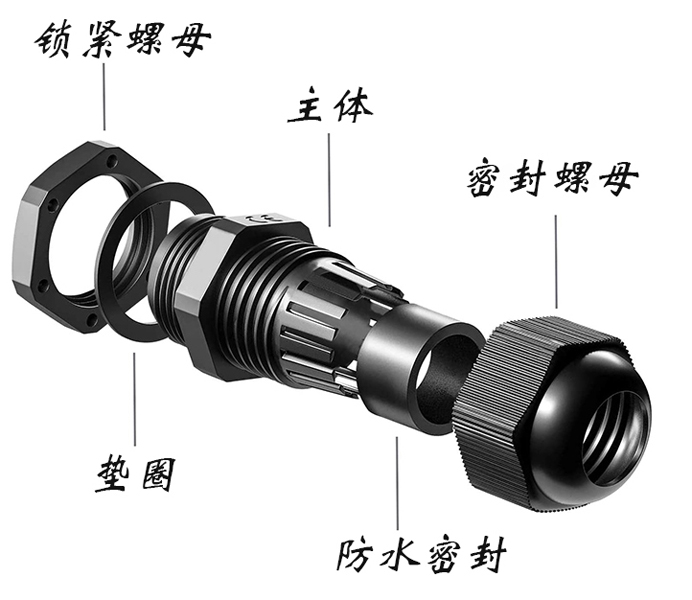

Decomposition:
Technical parameters:
Screw specifications | Specifications | Cable range | Outer diameter of thread | Thread | Wrench diameter | Package |
NPT 3/8 | NPT 3/8-10 | 6-10 | 16.6662 | 10 | 22 | 50 |
NPT 3/8-7 | 4-7 | 16.662 | 10 | 22 | 50 | |
NPT 1/2 | NPT 1/2-12 | 7-12 | 16.662 | 10 | 24 | 50 |
NPT 1/2-9 | 5-9 | 20.955 | 10 | 24 | 50 | |
NPT 3/4 | NPT 3/4-18 | 12-18 | 20.955 | 12 | 33 | 50 |
NPT 3/4-16 | 11-16 | 33.249 | 12 | 33 | 50 | |
NPT 1 | NPT 1-25 | 18-25 | 33.249 | 17 | 41 | 50 |
NPT 1-22 | 16-22 | 26.441 | 17 | 41 | 50 | |
NPT 1.1/4 | NPT 1.1/4-22 | 24-32 | 41.984 | 17 | 52 | 20 |
NPT 1.1/4-26 | 21-26 | 41.984 | 17 | 52 | 20 |
