Product Overview:
It acts on the waterproof and dustproof housing, mainly used to prevent objects inside the box, such as circuits, instruments, and apparatuses, from being affected in performance due to water ingress.
Waterproof Rating:
The general waterproof rating ranges from IP63 to IP68. Specifically classified as follows:
IP63: Water or rain falling on the housing from a 60 - degree angle has no impact;
IP64: Liquids splashed onto the housing from any direction cause no damage;
IP65: It can be rinsed with water without any harm;
IP66: It can be used in the environment of the ship's cabin;
IP67: It can withstand short - term immersion in water (1m);
IP68: It can be immersed in water under a certain pressure for a long time, such as in deep - water cable connections.
Main Applications:
Due to regional differences and different scopes of application, the waterproof box has different names. Those used in industry mainly include waterproof junction boxes, waterproof instrument boxes, waterproof photovoltaic junction boxes, etc. The waterproof box is mainly applicable to indoor and outdoor electrical, communication, and fire - fighting facilities, steel smelting, petrochemical, electronics, electric power, railways, construction sites, mines, mining fields, airports, hotels, ships, large factories, coastal factories, unloading dock equipment, waste water treatment facilities, and environmental pollution prevention facilities.

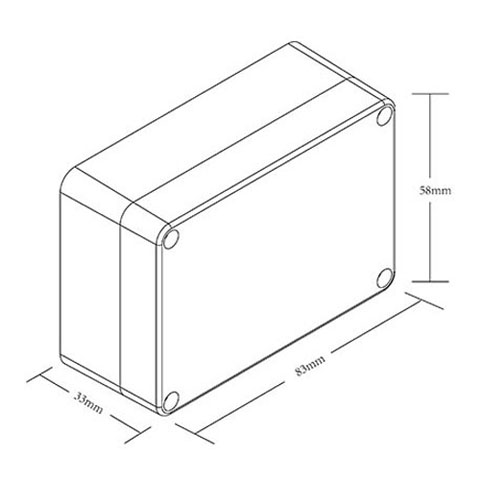

Overall dimensions:
Technical parameters:
Part No. | Dimension | Cover | Material | IP Rate |
F19-1 | 58*83*33MM | Solid/Transparent | ABS/PC | IP66/IP67 |
F2-2 | 90*150*64MM | Solid/Transparent | ABS/PC | IP66/IP67 |
