Product Information:
For solar panels or solar battery packs
Product Name: PV-MC
Features:
Suitable for cables of 2.5mm², 4mm², mm² (AWG14, AWG12, AWG10)
Excellent aging resistance and UV resistance, can be used in harsh environments
High current and high voltage load capacity
Easy to connect
Specifications:
Rated current: 30A
Rated voltage: 1000V DC
Contact resistance: ≤0.2mΩ
Waterproof level: IP68
Flame retardant grade: UL94-VO
Safety level: Ⅱ
Pull-out force: ≥50N
Insertion and extraction force: ≤50N
Insulating material:
Connection method: Crimp connection
Contact material: Copper, Tin-plated;
Temperature range: -40℃ - +90℃

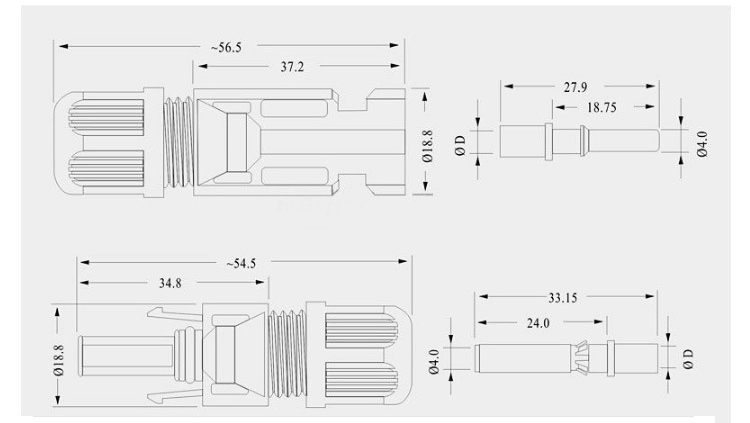

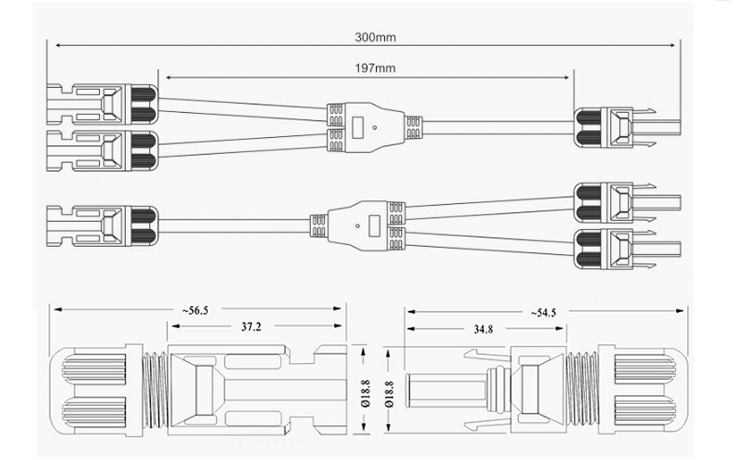

Overall dimensions:

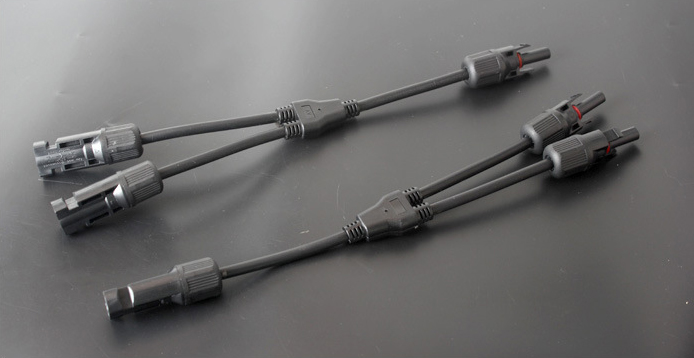

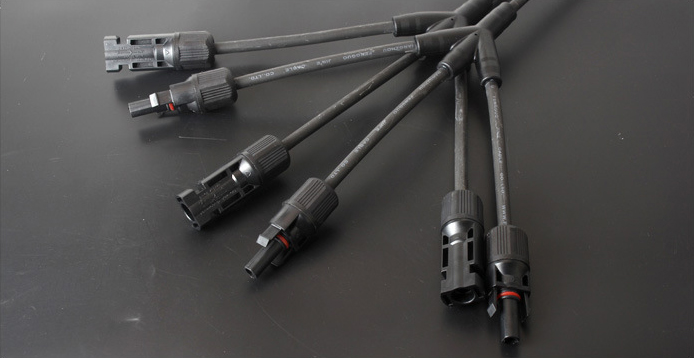

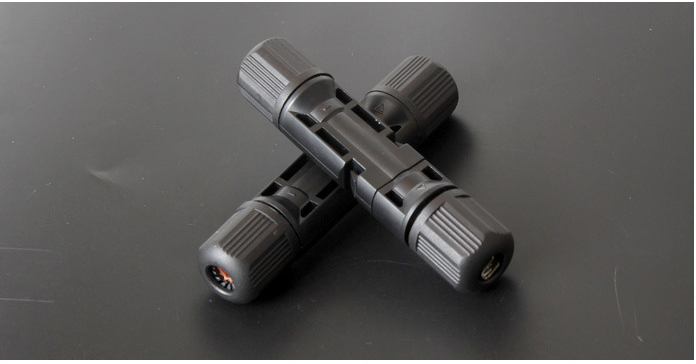

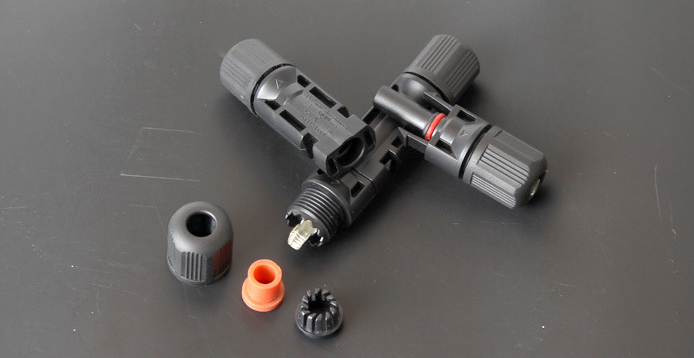

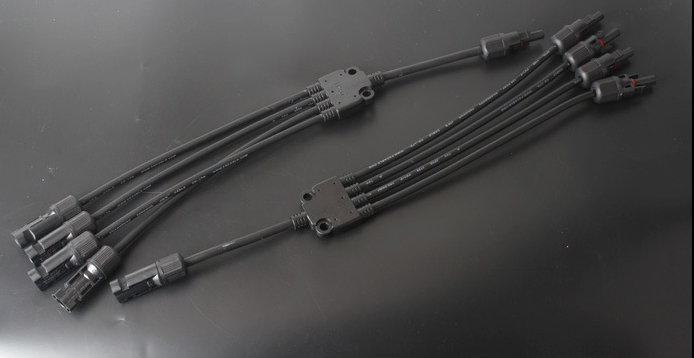

Product display:
