Thread specifications: Metric thread, PG thread, G (PF) thread. (Threads can be customized)
Waterproof rating: IP68 - 10
Operating temperature:
Static: -40°C to 100°C, or can withstand heat up to 120°C instantaneously. Dynamic: -20°C to 80°C, or can withstand heat up to 100°C instantaneously.
Product materials:
Parts A, C, and F are made of nickel - plated copper alloy. Part E is made of UL - approved nylon PA66 (fire - resistance rating UL94V - 2). Part D is made of nitrile or ethylene - propylene - diene monomer (EPDM) rubber. Part B is made of white high - temperature - resistant silicone rubber.
Product features:
1. The designed clamping mold and rubber parts have a wide clamping range and strong tensile resistance, causing no damage to cables and devices. It is suitable for explosion - proof areas and can withstand mechanical impact or long - term outdoor exposure.
2. The cable can be directly inserted without disassembly, and then easily tightened, saving time.
3. Its precise clamping and sealing technology fixes the steel wire rope. The product has high tensile strength, good airtightness, and a continuous sinking capacity of 50 meters.
4. The nickel - plated material has features such as high tensile strength, waterproof, dust - proof, salt - resistant, weak - acid - resistant, alcohol - resistant, oil - resistant, grease - resistant, and general - solvent - resistant.
5. It is suitable for most applications that require quick and reliable cable fixing, such as motion control, process control, robots, etc.
6. This product can also be used in combination with armored wires to achieve electromagnetic compatibility and anti - electromagnetic wave purposes.

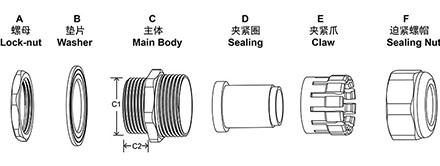

Exploded view:
Technical parameters:
Type A waterproof brass cable gland | ||||||
Metric thread | ||||||
Thread specification | Specification | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (pcs/package) |
M8*1.25 | M8-3.8 | 2-3.8 | 8 | 5.5 | 13/13 | 50 |
M10*1.0 | M10-6.5 | 3-6.5 | 10 | 6.5 | 14/14 | 50 |
M12S*1.25 | M12S-6.5 | 3-6.5 | 12 | 7 | 14/14 | 50 |
M12*1.5 | M12-8 | 4-8 | 12 | 8 | 17/17 | 50 |
M16S*1.5 | M16S-8 | 4-8 | 16 | 9 | 18/18 | 50 |
M16*1.5 | M16-10 | 5-10 | 16 | 9 | 22/22 | 50 |
M20S*1.5 | M20S-12 | 6-12 | 20 | 9.5 | 24/24 | 50 |
M20*1.5 | M20-14 | 10-14 | 20 | 9.5 | 25/25 | 50 |
M25*1.5 | M25-18 | 13-18 | 25 | 12 | 30/30 | 50 |
M32*1.5(2) | M32-25 | 18-25 | 32 | 12.5 | 40/40 | 50 |
M40*1.5(2) | M40-30 | 24-30 | 40 | 15 | 50/50 | 50 |
M50*1.5(2) | M50-41 | 32-41 | 50 | 15 | 59/59 | 50 |
M63*1.5(2) | M63-44 | 37-44 | 63 | 17 | 67/65 | 50 |
M63*1.5(2) | M64-51 | 44-51 | 63 | 17 | 73/73 | 50 |
