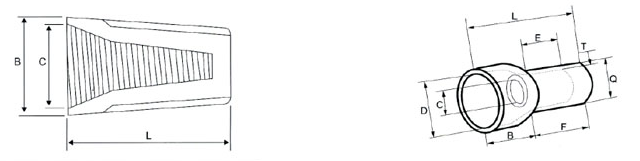

External dimensions
Technical parameters
Screw-cap pressure line | ||||||
Item NO. | Wire combination range | Dimension(mm) | color | Instruction | ||
B | C | L | ||||
SP1 | At least 0.75X1 + 0.5X1, at most 1.5X2 | 8.5 | 6.7 | 15.0 | End material: copper tube Insulation sleeve material: nylon | |
SP2 | At least 0.75X3, at most 1.5X3 | 10.1 | 7.4 | 17.5 | ||
SP3 | At least 0.75X3 at most 1.5X3+1X1 | 12.6 | 9.9 | 22.1 | ||
SP4 | At least 0.25X1+0.75X1 at most 2.5X4+0.75X1 | 13.7 | 11.0 | 24.5 | ||
SP5 | At least 0.25X2 at most 6X2+4X2 | 16.0 | 13.0 | 26.5 | ||
Closed end connectors | ||||||||||
Item NO. | Conductor cross - section | Dimension(mm) | ||||||||
A.W.G | mm² | Cmm | Tmm | Emm | Lmm | Fmm | Bmm | Dmm | Qmm | |
CEF 2216 | 22-16 | 0.5-1.5 | 2.4 | 0.4 | 7.0 | 15.3 | 6.3 | 9.0 | 9.0 | 5.0 |
CEF 2214 | 22-14 | 1.5-2.5 | 3.1 | 0.4 | 7.0 | 18.3 | 8.3 | 10.0 | 9.1 | 5.7 |
CEF 1810 | 18-10 | 4-6 | 4.5 | 0.75 | 7.0 | 20.0 | 10.0 | 10.0 | 12.0 | 8.0 |
CE 1 | 22-16 | 0.5-1.5 | 2.2 | 3.0 | 6.0 | 18.0 | 10.0 | 5.5 | 5.5 | 4.5 |
CE 2 | 16-14 | 1.5-2.5 | 2.9 | 4.0 | 6.5 | 19.8 | 11.0 | 6.5 | 7.0 | 5.0 |
CE 5 | 12-10 | 4-6 | 4.3 | 5.0 | 8.0 | 25.0 | 14.0 | 10.0 | 10.0 | 7.0 |
