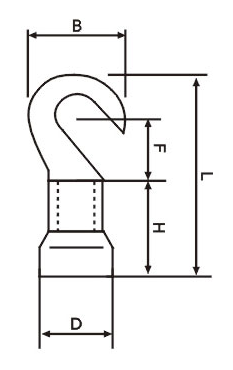

External dimensions
Technical parameters
ITEM NO | Dimension(mm | |||||||
American bolt number | The bolt passes through the port diameter | B | L | F | H | Dφ | Color | |
Wire cross-section: 0.5 - 1.5mm² (A.G.W22 - 16), maximum current · 1max = 19A | ||||||||
HV 1.25-3.5 | #6 | 3.7 | 8.0 | 21.0 | 7.0 | 10.0 | 4.9 | Red |
HV 1.25-4 | #8 | 4.3 | 8.0 | 21.0 | 7.0 | |||
HV 1.25-5 | #10 | 5.3 | 8.0 | 21.0 | 7.0 | |||
HV 1.25-6 | 1/4 | 6.5 | 12.0 | 27.0 | 11.1 | |||
Conductor cross - section: 0.5 - 1.5mm²(A.G.W22 - 16), maximum current·1max = 19A | ||||||||
HV 2-3.5 | #6 | 3.7 | 8.0 | 21.0 | 7.75 | 10.0 | 4.9 | Blue |
HV 2-4 | #8 | 4.3 | 8.0 | 21.0 | 7.75 | |||
HV 2-5 | #10 | 5.3 | 9.5 | 21.0 | 7.25 | |||
HV 2-6 | 1/4 | 6.5 | 12.0 | 27.0 | 11.0 | |||
Conductor cross - section: 4 - 6mm²(A.G.W12 - 10), maximum current ·1max = 48A | ||||||||
HV 5.5-3.5 | #6 | 7.0 | 21.4 | 21.0 | 5.9 | 12.5 | 6.7 | Yellow |
HV 5.5-4 | #8 | 9.5 | 25.5 | 21.0 | 8.25 | |||
HV 5.5-5 | #10 | 9.5 | 25.5 | 21.0 | 8.25 | |||
HV 5.5-6 | 1/4 | 12.0 | 31.5 | 27.0 | 13.0 | |||
