Product Overview:
It acts on the waterproof and dust - proof housing, mainly used to prevent objects inside the box, such as circuits, instruments, and apparatuses, from being affected by water ingress, which may impact their performance.
Waterproof Rating:
The general waterproof rating ranges from IP63 to IP68. The specific classification is as follows:
IP63: Water or rain falling on the enclosure from a 60 - degree angle has no impact.
IP64: Liquids splashed onto the enclosure from any direction cause no harmful effects.
IP65: It can be rinsed with water without any damage.
IP66: It can be used in the environment of the ship's cabin.
IP67: It can withstand short - term immersion in water (1m).
IP68: It can be immersed in water for a long time under a certain pressure, such as in deep - water cable connections.
Main Applications:
Due to regional differences and different scopes of application, the names of waterproof boxes vary. Those used in industry mainly include waterproof junction boxes, waterproof instrument boxes, waterproof photovoltaic junction boxes, etc. Waterproof boxes are mainly applicable to indoor and outdoor electrical, communication, and fire - fighting facilities, steel smelting, petrochemical, electronics, power, railways, construction sites, mines, mining areas, airports, hotels, ships, large factories, coastal factories, unloading dock equipment, wastewater treatment facilities, and environmental pollution facilities.

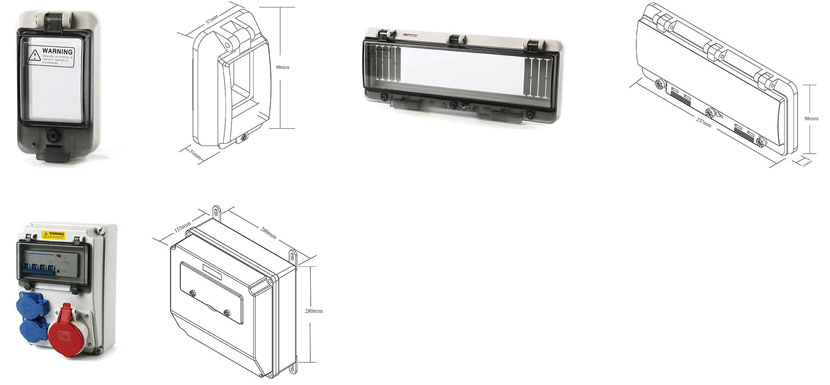

Product size:
Technical parameters:
Part No. | Dimension | Material | IP Rate |
PN2 | 98*57*31MM | PC | IP67/IP68 |
PN12 | 98*237*31MM | PC | IP67/IP68 |
