DT(G) & JG Series Copper Terminal Connectors – Copper Lugs for Electrical & Automotive Use

Product Features

These products are applicable to the connection of wires in distrbution equipment prower supply cable with electronic apparatus,it is made of(T2)copper tube by die cast These products are applicable to the connection of wires in distrbution equipment prower supply cable with electronic apparatus.it is made of(T2) copper tube by die cast and coated in.

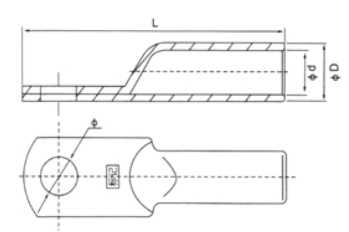

Dimension Drawing

Overall dimensions

Technical parameters

Type	φ	D	d	L
DT(G)-10	6.2	8	5	52
DT(G)-16	6.2	9	6	57
DT(G)-25	6.2	10	7	62
DT(G)-35	8.5	11	8	66
DT(G)-50	8.5	13	10	72
DT(G)-70	10.5	16	12	80
DT(G)-95	10.5	18	14	85
DT(G)-120	12.5	19	15	96
DT(G)-150	12.5	22	17	105
DT(G)-185	14.5	24	19	114
DT(G)-240	16.5	26	21	120
DT(G)-300	16.5	31	24	135
DT(G)-400	18.5	34	26	150
DT(G)-500	20.5	38	30	170
DT(G)-630	22.5	45	35	210
DT(G)-800	22.5	50	40	270

Overall dimensions

Technical parameters

Type	φ	D	d	L
JG-10	6.2	8	5	38
JG-16	6.2	9	6	41
JG-25	6.2	10	7	46
JG-35	8.5	11	8	52
JG-50	8.5	13	10	54
JG-70	10.5	16	12	61
JG-95	10.5	18	14	66
JG-120	12.5	19	15	73
JG-150	12.5	22	17	77
JG-185	14.5	24	19	86
JG-240	16.5	26	21	93
JG-300	16.5	31	24	103
JG-400	18.5	34	26	113
JG-500	20.5	38	30	124
JG-630	22.5	45	35	140
JG-800	22.5	50	40	170
