Thread specifications: Metric thread, PG thread, G(PF) thread. (Threads can be customized)
Waterproof rating: IP68-10
Operating temperature: Static -40°C to 100°C, or can withstand heat up to 120°C instantaneously. Dynamic -20°C to 80°C, or can withstand heat up to 100°C instantaneously.
Product features:
1. The designed clamping mold and rubber parts have a wide clamping range and strong tensile resistance, causing no damage to cables and devices. They are suitable for explosion-proof places and can withstand mechanical impact or long-term outdoor exposure.
2. Cables can be directly inserted without disassembly, and then easily tightened, saving time.
3. Its precise clamping and sealing technology enables the wire rope fixation to have strong tensile strength, good airtightness, and a continuous sinking ability of up to 50m.
4. The nickel-plated material has the characteristics of strong tensile strength, waterproof, dustproof, salt-resistant, weak acid-resistant, alcohol-resistant, oil-resistant, grease-resistant, and resistant to common solvents.
5. It is suitable for most applications where cables can be fixed quickly and reliably, such as motion control, process control, robots, etc.
6. This product can also be used in conjunction with armored wires to achieve electromagnetic compatibility and resist electromagnetic waves.
Exploded view:
Technical parameters:
Waterproof brass cable gland (half-through type) | ||||||
metric system | ||||||
Thread | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (Pcs/Package) |
M8*0.5 | M8-4.5 | 3-4.5 | 8 | 4 | 11/12 | 50 |
M10*1.0 | M10-6.5 | 3-6.5 | 10 | 6.5 | 14/14 | 50 |
M12*1.5 | M12-6.5 | 3-6.5 | 12 | 6.5 | 14/14 | 50 |
M12-8 | 4-8 | 12 | 7 | 14/17 | 50 | |
M14*1.5 | M14-8 | 4-8 | 14 | 7 | 17/17 | 50 |
M16*1.5 | M16-8 | 4-8 | 16 | 8 | 18/18 | 50 |
M16-10 | 5-10 | 16 | 8 | 18/20 | 50 | |
M18*1.5 | M18-10 | 5-10 | 18 | 8 | 20/20 | 50 |
M20*1.5 | M20-12 | 6-12 | 20 | 8 | 22/22 | 50 |
M22*1.5 | M22-14 | 10-14 | 22 | 8 | 24/24 | 50 |
M24*1.5 | M24-14 | 10-14 | 24 | 9 | 27/24 | 50 |
M25*1.5 | M25-14 | 10-14 | 25 | 9 | 27/24 | 50 |
M25-16 | 12-16 | 25 | 9 | 27/27 | 50 | |
M25-18 | 13-18 | 25 | 9 | 27/30 | 50 | |
M27*1.5(2) | M27-18 | 13-18 | 27 | 9 | 30/30 | 50 |
M28*1.5(2) | M28-18 | 13-18 | 28 | 9 | 30/30 | 50 |
M30*1.5(2) | M30-18 | 13-18 | 30 | 9 | 32/30 | 50 |
M32*1.5(2) | M32-22 | 15-22 | 32 | 10 | 35/35 | 50 |
M33*1.5(2) | M33-22 | 15-22 | 33 | 10 | 35/35 | 50 |
M36*1.5(2) | M36-25 | 18-25 | 36 | 10 | 40/40 | 50 |
M37*1.5(2) | M37-25 | 18-25 | 37 | 10 | 40/40 | 50 |
M40*1.5(2) | M40-30 | 22-30 | 40 | 11 | 45/45 | 50 |
M42*1.5(2) | M42-30 | 22-30 | 42 | 11 | 45/45 | 50 |
M47*1.5(2) | M47-33 | 25-33 | 47 | 11 | 50/50 | 50 |
M48*1.5(2) | M48-33 | 25-33 | 48 | 11 | 50/52 | 50 |
M50*1.5(2) | M50-38 | 32-38 | 50 | 13 | 55/57 | 50 |
M54*1.5(2) | M54-38 | 32-38 | 54 | 13 | 55/57 | 50 |
M60*1.5(2) | M60-44 | 37-44 | 60 | 14 | 64/64 | 50 |
M63*1.5(2) | M63-44 | 37-44 | 63 | 14 | 68/64 | 50 |
M64*1.5(2) | M64-44 | 37-44 | 64 | 14 | 68/64 | 50 |
M72*1.5(2) | M72-52 | 42-52 | 72 | 16 | 78/78 | 50 |
M75*1.5(2) | M75-52 | 42-52 | 75 | 16 | 78/78 | 50 |
M80*1.5(2) | M80-62 | 55-62 | 80 | 18 | 88/88 | 50 |
M88*1.5(2) | M88-70 | 65-70 | 88 | 18 | 94/94 | 50 |
M100*1.5(2) | M100-84 | 78-84 | 100 | 20 | 110/110 | 50 |
PG | ||||||
Thread | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (Pcs/Package) |
PG7 | PG7-6.5 | 3-6.5 | 12.5 | 6.5 | 14/14 | 50 |
PG9 | PG9-8 | 4-8 | 15.2 | 7 | 17/17 | 50 |
PG11 | PG11-10 | 5-10 | 18.6 | 8 | 20/20 | 50 |
PG13.5 | PG13.5-12 | 6-12 | 20.4 | 8 | 22/22 | 50 |
PG16 | PG16-14 | 10-14 | 22.5 | 9 | 24/24 | 50 |
PG19 | PG19-14 | 10-14 | 25 | 9 | 27/24 | 50 |
PG21 | PG21-18 | 13-18 | 28.3 | 9 | 30/30 | 50 |
PG25 | PG25-22 | 15-22 | 32 | 10 | 35/35 | 50 |
PG29 | PG29-25 | 18-25 | 37 | 11 | 40/40 | 50 |
PG36 | PG36-33 | 25-33 | 47 | 11 | 50/50 | 50 |
PG42 | PG42-38 | 32-38 | 54 | 13 | 57/57 | 50 |
PG48 | PG48-44 | 37-44 | 59.3 | 14 | 64/64 | 50 |
PG63 | PG63-52 | 42-52 | 72 | 16 | 78/78 | 50 |
NPT | ||||||
Thread | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (Pcs/Package) |
NPT1/4 | NPT1/4 | 3-6.5 | 13.6 | 6 | 14/14 | 50 |
NPT3/8 | NPT3/8 | 4-8 | 17 | 8 | 18/18 | 50 |
NPT1/2 | NPT1/2 | 6-12 | 21.2 | 8 | 22/22 | 50 |
NPT3/4 | NPT3/4 | 13-18 | 26.5 | 9 | 30/30 | 50 |
NPT1 | NPT1 | 18-25 | 33.2 | 11 | 40/40 | 50 |
NPT1-1/4 | NPT1-1/4 | 25-33 | 41.9 | 13 | 50/50 | 50 |
NPT1-1/2 | NPT1-1/2 | 32-38 | 48 | 14 | 57/57 | 50 |
NPT2 | NPT2 | 37-44 | 60 | 14 | 64/64 | 50 |
NPT2-1/2 | NPT2-1/2 | 42-52 | 72.6 | 15 | 77/77 | 50 |
NPT3 | NPT3 | 65-70 | 88.6 | 15 | 94/94 | 50 |
G | ||||||
Thread | Specifications | Cable range (mm) | Thread outer diameter (mm) | Thread length (mm) | Wrench diameter (mm) | Packaging (Pcs/Package) |
G1/4 | G1/4 | 3-6.5 | 13.1 | 6 | 14/14 | 50 |
G3/8 | G3/8 | 4-8 | 16.6 | 8 | 18/18 | 50 |
G1/2 | G1/2 | 6-12 | 20.9 | 8 | 22/22 | 50 |
G3/4 | G3/4 | 13-18 | 26.4 | 9 | 30/30 | 50 |
G1 | G1 | 18-25 | 33.2 | 10 | 40/40 | 50 |
G1-1/4 | G1-1/4 | 25-33 | 41.9 | 13 | 50/50 | 50 |
G1-1/2 | G1-1/2 | 32-38 | 47.8 | 14 | 57/57 | 50 |
G2 | G2 | 37-44 | 59.6 | 14 | 64/64 | 50 |
G2-1/2 | G2-1/2 | 42-52 | 75.1 | 15 | 77/77 | 50 |
G3 | G3 | 65-70 | 87.8 | 15 | 94/94 | 50 |

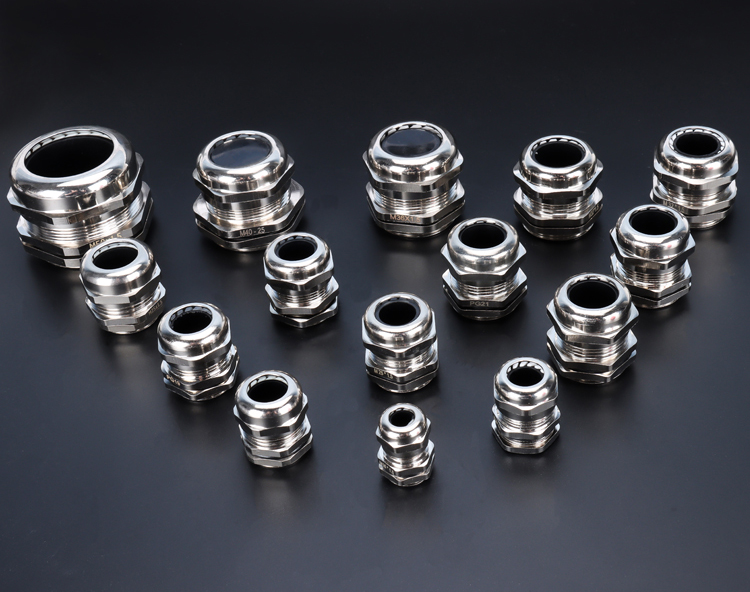

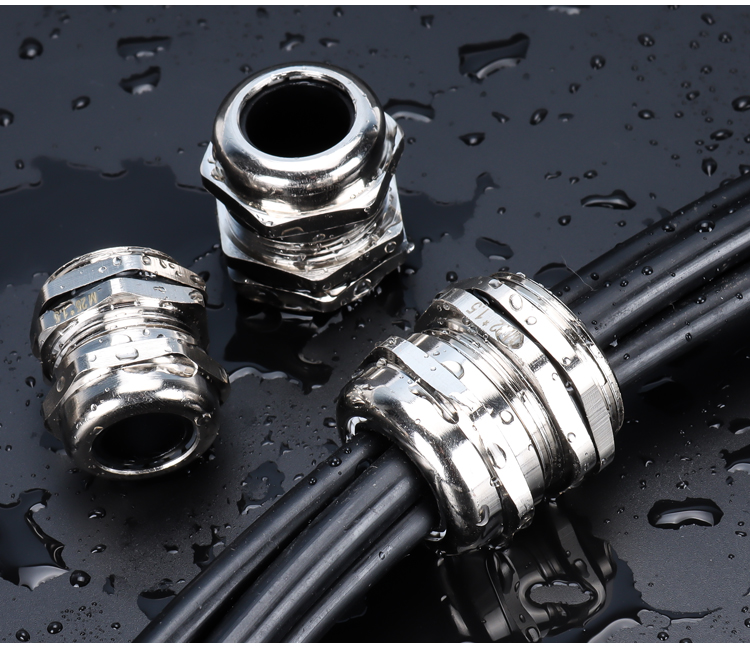

Product physical display:
